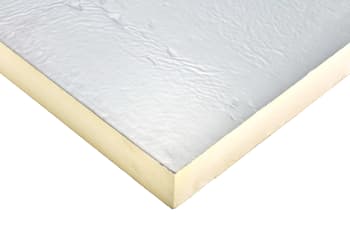

75mm Celotex GA4075 PIR Insulation Board 2400mm x 1200mm

What Is 75mm Celotex GA4075?

For top-tier thermal performance, trust in the 75mm Celotex GA4075 insulation board. These superior 2.4m x 1.2m PIR boards are equipped with low-emissivity foil facings, enhancing insulation, especially in sealed cavity air spaces.

Boasting a remarkable thermal conductivity of just 0.022 W/mK, these boards excel in preserving heat within a structure, all while adhering to building regulations and without encroaching on interior spaces.

The 75mm Celotex GA4075 is crafted with a rigid foam core and is responsibly produced using an ozone-friendly blowing agent with minimal global warming impact.

Perfectly suited for insulating floors, walls (be it partition or solid masonry), and roofs, the Celotex GA4075 doesn't just stop at thermal insulation. It also offers impressive resistance to water vapour and boasts a commendable compressive strength of 140kPa.

The GA4075 insulation board is just one of many popular thermal insulation solutions in the Celotex product range. It comes from the GA4000 product group, which includes 6 other thicknesses; 50mm (GA4050), 60mm (GA4060), 70mm(GA4070), 80mm (GA4080), 90mm (GA4090) and 100mm (GA4100).

Where is 75mm Celotex GA4075 Used?

Celotex GA4075 is suitable for the following applications:

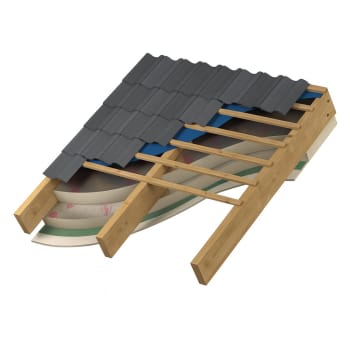

• Pitched roofs

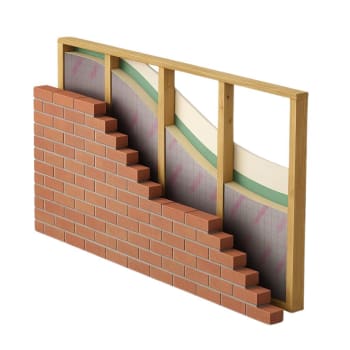

• Solid masonry walls
• Partition walls
• Timber frames & steel framed systems
• Timber frame internal linings
• Solid floor systems - screed and concrete slab applications
• Ground floors
• Loft insulation – between and over timber joists (pitched roof)
• Timber frame sheathing (external wall)
• Between timber frame studs (external wall)
• Solid masonry internal linings (external wall)

75mm Celotex GA4075 Key Features & Benefits

• Suitable for use in a number of applications including defined roof, wall and floor applications
• Thermal conductivity of 0.022 W/mK - excellent thermal performance
• Moisture-resistant
• Low Global Warming Potential (low GWP) and Zero Ozone Depletion Potential (zero ODP)
• Achieves an A+ rating when compared to the BRE Green Guide 2008
• Features low emissivity foil facings giving improved thermal insulation performance within cavity air spaces
• Manufactured from rigid polyisocyanurate
• Easy to cut and shape
• Standard board size: 2.4m x 1.2m x 75mm
• Provides reliable long-term energy savings for buildings

Celotex GA4075 Insulation Board Certifications

BS EN is British and European Standard Specifications. With over 100 years of experience, the British Standards Institute is recognised as the UK’s National standards body.

• Spread of flame: Euroclass E Reaction to Fire classification, according to BS EN 13501-1
• Thermal conductivity of 0.022 W/m.K, reducing the thickness of insulation required to hit the target U-value - BS EN 12667
• Compressive strength: ≥140kPa - BS EN 826
• CE marking compliance to BS EN 13165
• BRE Green Guide Rating of A for sustainability - which can assist in demonstrating environmental performance in your BREEAM assessments
• BBA certified
