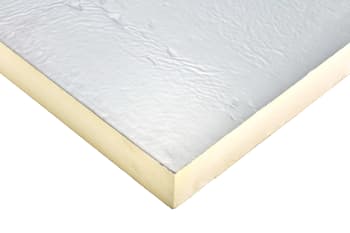

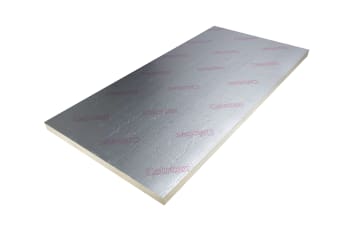

80mm Celotex GA4080 PIR Insulation Board 2400mm x 1200mm

What Is 80mm Celotex GA4080?

80mm Celotex GA4080 multi-purpose insulation board helps to keep comfortability levels high whilst keeping energy bills low.

Celotex GA4080 boards are manufactured from tough polyisocyanurate (PIR) using a perfect mix of certain blowing agents which acquires zero ozone depletion potential (zero ODP) and a low global warming impact (GWP), making this general application insulation board the perfect choice for the eco-conscious.

80mm Celotex GA4080 thermal insulation solution is suitable for floor, wall, and roof applications.

The most popular Celotex PIR general application insulation board in our range is 2400mm long and 1200mm wide.

These high-performance 2.4m x 1.2m PIR boards feature low-emissivity foil facings that give improved thermal insulation performance in sealed cavity air spaces, improving the thermal envelope of your home with an impressive thermal conductivity of 0.022 W/mK.

Not only that, but they also offer excellent water vapour resistance and a reasonable compressive strength of 140kPa.

80mm Celotex GA4080 PIR Insulation Board Applications

This BBA certified PIR insulation board is suitable for roof, floor, and wall applications.

Equipped with an innovative low emissivity foil facing and manufactured from rigid polyisocyanurate (PIR), the boards are easy to cut and shape for application in pitched roofs, solid masonry walls, partition walls, timber frames, and steel-framed systems, specifically timber frame internal linings, solid masonry internal linings and between timber joists.

It can also be used as floor insulation in solid floor systems such as screed and concrete slab floors, and as loft insulation between timber rafters.

80mm Celotex GA4080 is suitable for the following applications:

• Pitched roofs
• Solid masonry walls
• Timber frames & steel framed systems
• Timber frame internal linings
• Floors - screed, concrete slab and timber joist floors
• Loft insulation – between and over timber joists (pitched roof)
• Timber frame sheathing (external wall)
• Between timber frame studs (external wall)
• Solid masonry internal linings (external wall)

80mm Celotex GA4080 Specifications

Available in 2.4m x 1.2m, GA4080 insulation board promises a reduction in heat loss and an increase in comfort. This Celotex thermal insulation board feature low emissivity foil facings giving improved thermal insulation performance within cavity air spaces and offering an outstanding thermal conductivity of 0.022 W/m.K.

Let's have a look at the specs:

• Suitable for use in a number of applications including roof, wall and floor systems
• Thermal conductivity of 0.022 W/mK
• Moisture-resistant
• Low Global Warming Potential (GWP) and Zero Ozone Depleting Potential (ODP)
• Achieves an A+ rating when compared to the BRE Green Guide 2008
• Features low emissivity foil facings giving improved thermal insulation performance within cavity air spaces
• Easy to cut and shape
• Provides reliable long-term energy savings for buildings

80mm Celotex GA4080 Certifications

BS EN is British and European Standard Specifications. With over 100 years of experience, the British Standards Institute is recognised as the UK’s National standards body.

• Spread of flame: Euroclass E Reaction to Fire classification, according to BS EN 13501-1
• Thermal conductivity of 0.022 W/m.K, reducing the thickness of insulation required to hit the target U-value - BS EN 12667
• Compressive strength: ≥140kPa - BS EN 826
• BRE Green Guide Rating of A for sustainability - which can assist in demonstrating environmental performance in your BREEAM assessments
• BBA certified

80mm Celotex GA4080 Insulation Storage & Handling

As they are super light and portable, 80mm Celotex GA4080 boards can also be handled and transported easily; making them a doddle to install. If you need to store 80mm Celotex boards for a while before installation, you should choose a cool, dry space.

Our rule of thumb when it comes to storage is that the boards should not be stored on the ground. Instead, pop them on a level surface and under a protective cover, just for good measure.

About Celotex

Celotex is a leading British manufacturer of 80mm thickness PIR insulation. Founded in the early 1920s, the company has since evolved from a fibreboard insulation company to one that solely focuses on PIR insulation boards.

The 80mm Celotex GA4080 insulation board is just one of many popular thermal insulation solutions in the Celotex product range. It comes from the GA4000 product group, which includes 6 other thicknesses; 50mm (GA4050), 60mm (GA4060), 70mm(GA4070), 75mm(GA4075), 90mm (GA4090) and 100mm (GA4100).
