65mm x 100mm Prestressed Textured Concrete Lintel 1200mm

URN: 5003210
Core
£9.34ex. VAT £7.78 per Lnm Get it for £8.08 ex. VAT with CORE+
£9.34ex. VAT
£7.78 per Lnm
Bulk Discount
13+ units 23+ units 33+ units
£9.19ex. VAT £9.06ex. VAT £8.92ex. VAT
Prestressed lintel for masonry openings. 65mm width for brickwork, with 100mm height providing capacity for lighter loads. 1200mm length suited to standard window and door spans.

Nationwide Delivery

Tue 14 Oct

Order by 2pm today
  • 6hrs
  • 52mins
  • 48secs

Delivery & Returns Info

Get Free Delivery with CORE+

Make 3 payments of £3.11 with PayPal Learn more
Make 3 payments of £3.11 with Klarna Learn more
Make 4 payments of £2.34 with Clearpay Learn more

Product Overview

Prestressed lintel for masonry openings. 65mm width for brickwork, with 100mm height providing capacity for lighter loads. 1200mm length suited to standard window and door spans.

URN: 5003210
£9.34ex. VAT

Delivery & Returns Information

How Our Delivery Works

We work with a nationwide network of trusted suppliers. As a result, items in your basket may be supplied by different suppliers and delivered separately. Where this applies, you'll see multiple delivery charges at checkout. We always aim to group products from the same supplier to keep delivery costs as low as possible.

Delivery Areas & Charges

Delivery charges listed on our website apply to mainland UK, excluding the following postcode areas: AB, CF, DD, DG, FK, KW, IV, LA, LD, LL, NP, PA, PH, SA, SY
If your delivery address falls within one of these postcode areas, we’ll be in touch before processing your order to confirm any additional delivery costs.
Please note: We do not currently offer delivery outside the UK mainland.

Standard (Nationwide) Delivery

Core Products
Core
ORDER VALUE DELIVERY CHARGE
Under £300 ex. VAT £20 ex. VAT
Over £300 ex. VAT FREE

Core Delivery charges apply only when all products in an order that have equivalents are accepted as such. If even one product cannot be substituted with an equivalent, the entire order will not qualify for Core Delivery charges.

Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products
ORDER VALUE DELIVERY CHARGE
Under £300 £10 ex. VAT
Over £300 ex. VAT FREE
Insulation, Plasterboard and Drylining Products
ORDER VALUE DELIVERY CHARGE
Under £350 £35 ex. VAT
Over £350 ex. VAT FREE
Screws & Fixings and Adhesives & Sealants
ORDER VALUE DELIVERY CHARGE
Under £50 £5 ex. VAT
Over £50 ex. VAT FREE

Express Delivery

Express Delivery - Insulation and Plasterboard & Drylining
ORDER VALUE DELIVERY CHARGE
Under £400 £50 ex. VAT
Over £400 ex. VAT £35 ex. VAT
Express Delivery - Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products
ORDER VALUE DELIVERY CHARGE
Under £300 £50 ex. VAT
Over £300 ex. VAT £35 ex. VAT

View Full Delivery Policy

Returns

We offer a 30 day returns policy on any faulty products.

View Full Returns Policy


Key Features

  • {{border_clear}} Textured finish enhances mortar adhesion
  • {{fitness_center}} Prestressing technology enhances load-bearing capacity
  • {{foggy}} Durability against weathering and corrosion
  • {{door_back}} Structural support for brickwork above doors and windows

Technical Specification

Technical Specification
Material Type:Concrete
Width:100mm
Length:1200mm
Height:65mm
Sales Unit:Each
Weight:17.12kg
Colour:Grey

Product Overview

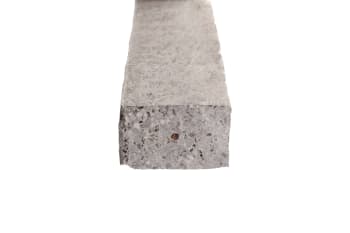

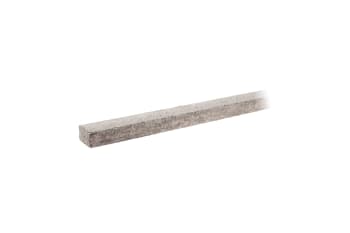

65mm wide x 100mm high prestressed concrete lintel in a 1200mm length, designed for use in standard masonry openings. Manufactured from high-strength concrete and reinforced with prestressed steel wires, this lintel provides reliable structural support for brickwork above doors and windows.

The textured finish improves mortar adhesion, ensuring secure bonding with surrounding masonry. Prestressing technology enhances load-bearing capacity while keeping section dimensions compact, making this lintel suitable for light to medium-duty applications.

Produced to consistent standards, the lintel offers durability against weathering and corrosion, ensuring long service life with minimal maintenance once installed.


At 1200mm, the lintel is suited to typical domestic window and door spans. It provides a safe, economical, and durable solution for supporting masonry loads in residential and light commercial construction.


Features & Benefits

  • High-strength construction: Manufactured from dense, durable concrete reinforced with prestressed steel wires.
  • Improved bond: Textured finish enhances mortar adhesion for secure placement.
  • Durable performance: Resistant to fire, rot, and corrosion for long-term reliability.
  • Compact section: 65mm width and 100mm height suitable for brickwork with lighter loading requirements.
  • Standard application: 1200mm length suited to typical domestic window and door openings.


Applications

  • Window openings: Supports masonry above standard domestic window spans.
  • Door openings: Provides reliable support for brickwork over common door sizes.
  • Internal partitions: Suitable for non-load-bearing internal masonry where lintel support is required.
  • Light structural spans: Used where compact lintels are appropriate for lighter loads.


Installation Guidance

  • Support requirements: Ensure a minimum bearing of 150mm at each end of the lintel.
  • Placement: Position level and central over the span with full mortar bedding.
  • Handling: Lift carefully using safe manual or mechanical methods; avoid impact damage.
  • Compatibility: Use with standard brick or block masonry and ensure adequate cover with mortar.
  • Protection: Protect from site damage and ensure proper curing in exposed conditions.


Compliance & Performance

  • Material: Dense concrete reinforced with prestressed steel wires.
  • Finish: Textured surface for mortar adhesion.
  • Load capacity: Designed for lighter masonry loads over standard openings.
  • Fire resistance: Non-combustible material, resistant to fire exposure.
  • Durability: Resistant to rot, corrosion, and long-term weathering.
  • Standards: Manufactured in accordance with relevant BS EN concrete lintel specifications.
  • Important note: Always verify load requirements against structural calculations and choose lintel size and section appropriate for the span and wall construction.
