100mm x 140mm Prestressed Textured Concrete Lintel 2700mm
3+ units | 6+ units | 8+ units |
£42.20ex. VAT | £41.55ex. VAT | £40.93ex. VAT |
Nationwide Delivery
Tue 14 Oct
- 0days
- 6hrs
- 52mins
- 47secs
Product Overview
Delivery & Returns Information
How Our Delivery Works
We work with a nationwide network of trusted suppliers. As a result, items in your basket may be supplied by different suppliers and delivered separately. Where this applies, you'll see multiple delivery charges at checkout. We always aim to group products from the same supplier to keep delivery costs as low as possible.
Delivery Areas & Charges
Delivery charges listed on our website apply to mainland UK, excluding the following postcode areas: AB, CF, DD, DG, FK, KW, IV, LA, LD, LL, NP, PA, PH, SA, SY
If your delivery address falls within one of these postcode areas, we’ll be in touch before processing your order to confirm any additional delivery costs.
Please note: We do not currently offer delivery outside the UK mainland.
Standard (Nationwide) Delivery
Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products | |
---|---|
ORDER VALUE | DELIVERY CHARGE |
Under £300 | £10 ex. VAT |
Over £300 ex. VAT | FREE |
Insulation, Plasterboard and Drylining Products | |
ORDER VALUE | DELIVERY CHARGE |
Under £350 | £35 ex. VAT |
Over £350 ex. VAT | FREE |
Screws & Fixings and Adhesives & Sealants | |
ORDER VALUE | DELIVERY CHARGE |
Under £50 | £5 ex. VAT |
Over £50 ex. VAT | FREE |
Express Delivery
Express Delivery - Insulation and Plasterboard & Drylining | |
---|---|
ORDER VALUE | DELIVERY CHARGE |
Under £400 | £50 ex. VAT |
Over £400 ex. VAT | £35 ex. VAT |
Express Delivery - Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products | |
ORDER VALUE | DELIVERY CHARGE |
Under £300 | £50 ex. VAT |
Over £300 ex. VAT | £35 ex. VAT |
Returns
We offer a 30 day returns policy on any faulty products.
Key Features
- {{border_clear}} Textured finish enhances mortar adhesion
- {{fitness_center}} Prestressing technology enhances load-bearing capacity
- {{foggy}} Durability against weathering and corrosion
- {{door_back}} Structural support for brickwork above doors and windows
Technical Specification
Material Type: | Concrete |
---|---|
Width: | 140mm |
Length: | 2700mm |
Height: | 100mm |
Sales Unit: | Each |
Weight: | 83.46kg |
Colour: | Grey |
Product Overview

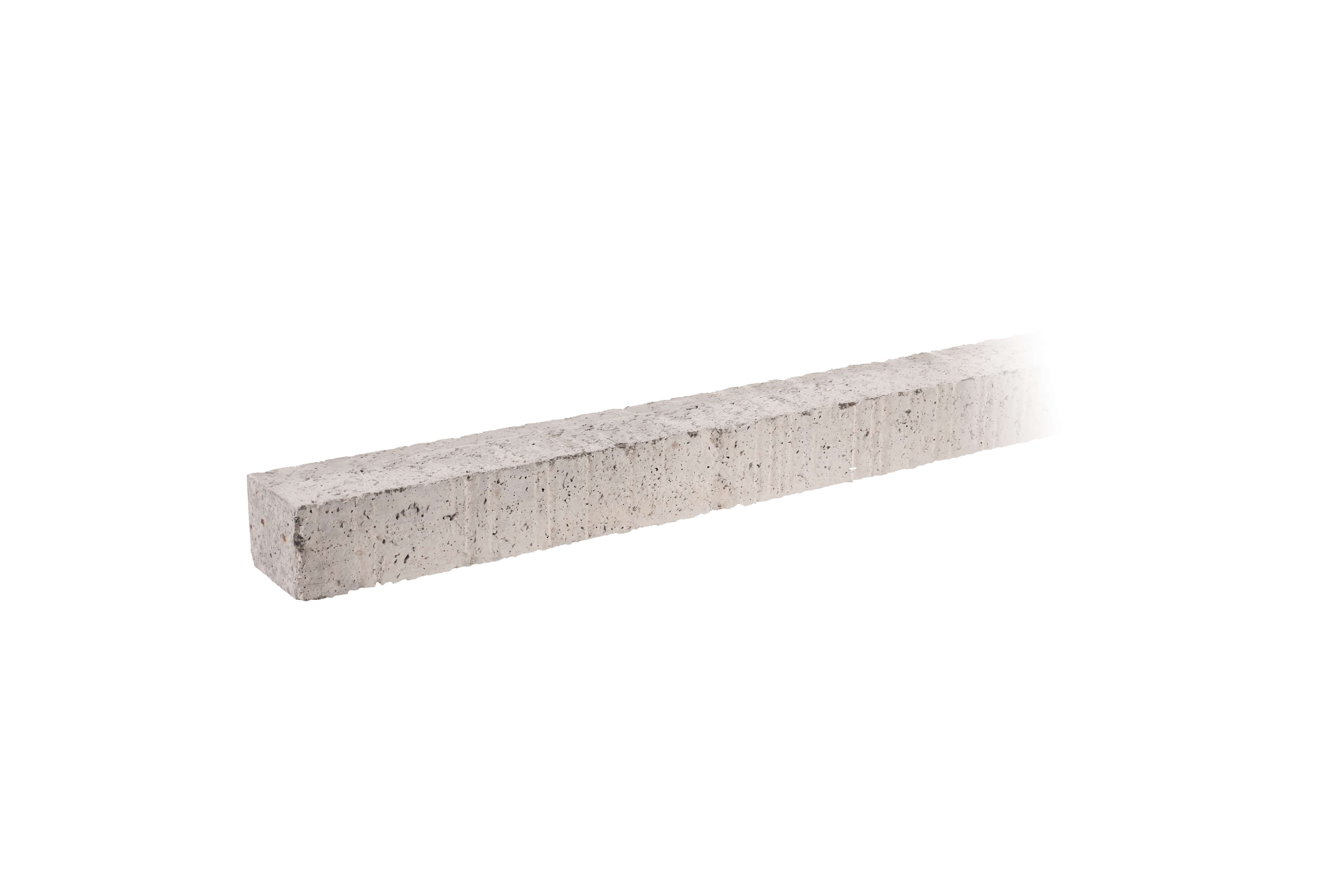

100mm wide x 140mm high prestressed concrete lintel in a 2700mm length, designed for structural wide spans. Manufactured from high-strength concrete and reinforced with prestressed steel wires, this lintel provides reliable structural support for brickwork above doors and windows.
The textured finish improves mortar adhesion, ensuring secure bonding with surrounding masonry. Prestressing technology enhances load-bearing capacity while keeping section dimensions compact, making this lintel suitable for light to medium-duty applications.
Produced to consistent standards, the lintel offers durability against weathering and corrosion, ensuring long service life with minimal maintenance once installed.
At 2700mm, the lintel is suited to extra-wide blockwork openings in both domestic and commercial buildings.
Features & Benefits
- High-strength construction: Manufactured from dense, durable concrete reinforced with prestressed steel wires.
- Improved bond: Textured finish enhances mortar adhesion for secure placement.
- Durable performance: Resistant to fire, rot, and corrosion for long-term reliability.
- Wide section: 100mm width and 140mm height providing capacity for medium to heavy blockwork loads.
- Structural span application: 2700mm length is designed for spanning extra-wide structural blockwork openings.
Applications
- Structural wide spans: Provides dependable support across extended apertures in block walls.
- Commercial use: Suitable for large spans in retail, office, or light industrial construction.
- Large domestic builds: Common in homes requiring expansive openings.
- Heavy blockwork loads: Ensures structural safety where blockwork spans wide gaps.
Installation Guidance
- Support requirements: A minimum 200mm end bearing is required for lintels of 2400mm and above.
- Placement: Position level and central over the span with full mortar bedding.
- Handling: Lift carefully using safe manual or mechanical methods; avoid impact damage.
- Compatibility: Use with standard brick or block masonry and ensure adequate cover with mortar.
- Protection: Protect from site damage and ensure proper curing in exposed conditions.
Compliance & Performance
- Material: Dense concrete reinforced with prestressed steel wires.
- Finish: Textured surface for mortar adhesion.
- Load capacity: Designed for medium to heavy blockwork loads.
- Fire resistance: Non-combustible material, resistant to fire exposure.
- Durability: Resistant to rot, corrosion, and long-term weathering.
- Standards: Manufactured in accordance with relevant BS EN concrete lintel specifications.
- Important note: Always verify load requirements against structural calculations and choose lintel size and section appropriate for the span and wall construction.
