GL1 Metal Liner Stud 3000mm

URN: 2005171
£2.64ex. VAT £0.88 per Lnm
£2.64ex. VAT
£0.88 per Lnm

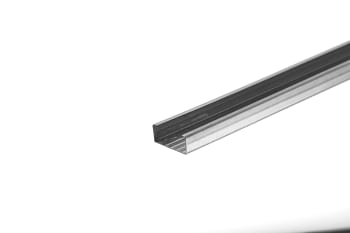

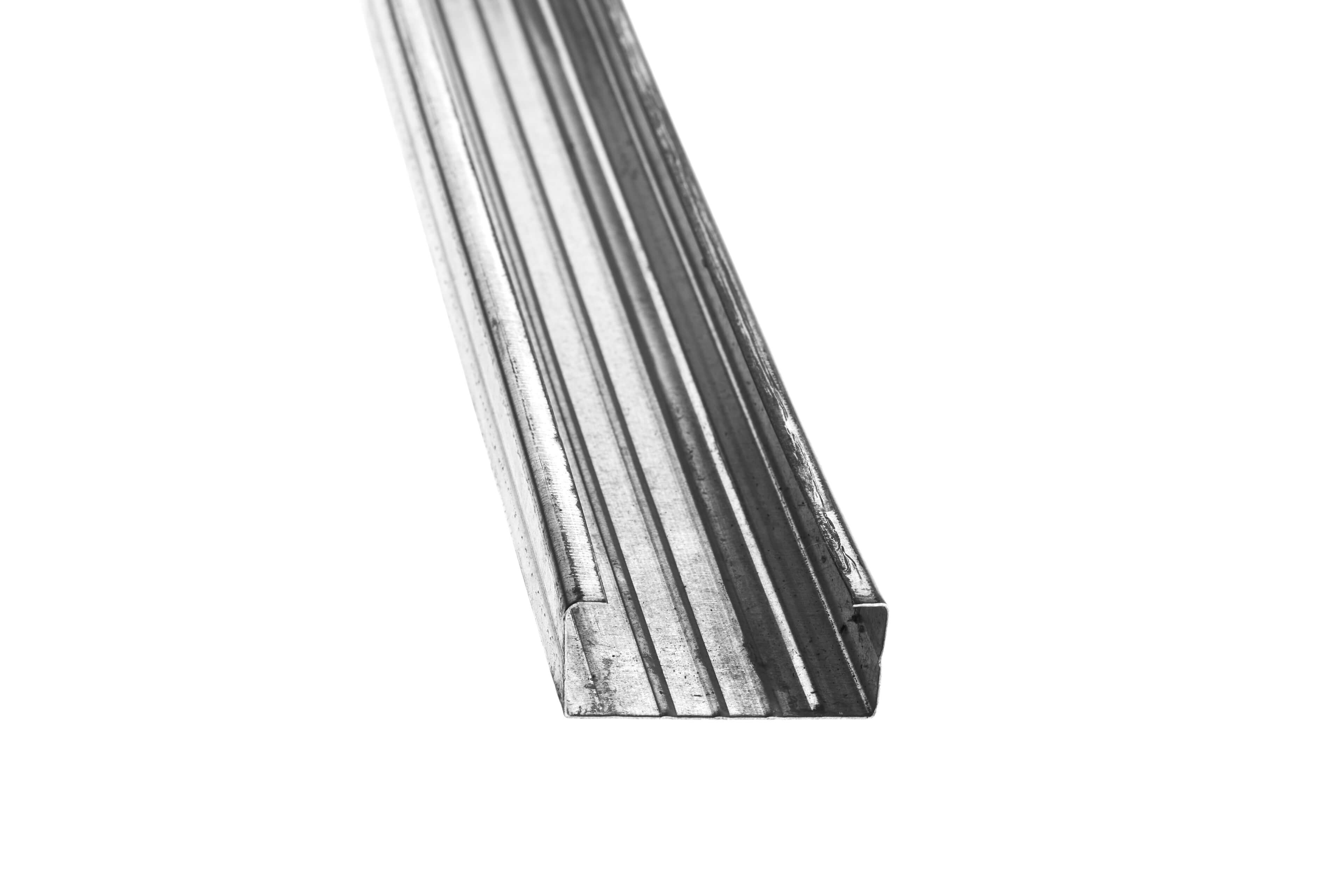

GL1 galvanised steel liner stud for wall lining systems. Suitable for fixing plasterboard linings to masonry walls. 3000mm length.
±10 Sold in multiples of 10

Nationwide Delivery

Tue 14 Oct

Order by 2pm tomorrow
  • 22hrs
  • 18mins
  • 4secs

Delivery & Returns Info

Make 3 payments of £8.80 with PayPal Learn more
Make 3 payments of £8.80 with Klarna Learn more
Make 4 payments of £6.60 with Clearpay Learn more

Product Overview

GL1 galvanised steel liner stud for wall lining systems. Suitable for fixing plasterboard linings to masonry walls. 3000mm length.

URN: 2005171
£2.64ex. VAT
±10 Sold in multiples of 10
±10 Sold in multiples of 10

Delivery & Returns Information

How Our Delivery Works

We work with a nationwide network of trusted suppliers. As a result, items in your basket may be supplied by different suppliers and delivered separately. Where this applies, you'll see multiple delivery charges at checkout. We always aim to group products from the same supplier to keep delivery costs as low as possible.

Delivery Areas & Charges

Delivery charges listed on our website apply to mainland UK, excluding the following postcode areas: AB, CF, DD, DG, FK, KW, IV, LA, LD, LL, NP, PA, PH, SA, SY
If your delivery address falls within one of these postcode areas, we’ll be in touch before processing your order to confirm any additional delivery costs.
Please note: We do not currently offer delivery outside the UK mainland.

Standard (Nationwide) Delivery

Insulation, Plasterboard and Drylining Products
ORDER VALUE DELIVERY CHARGE
Under £350 £35 ex. VAT
Over £350 ex. VAT FREE
Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products
ORDER VALUE DELIVERY CHARGE
Under £300 £10 ex. VAT
Over £300 ex. VAT FREE
Screws & Fixings and Adhesives & Sealants
ORDER VALUE DELIVERY CHARGE
Under £50 £5 ex. VAT
Over £50 ex. VAT FREE

Express Delivery

Express Delivery - Insulation and Plasterboard & Drylining
ORDER VALUE DELIVERY CHARGE
Under £400 £50 ex. VAT
Over £400 ex. VAT £35 ex. VAT
Express Delivery - Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products
ORDER VALUE DELIVERY CHARGE
Under £300 £50 ex. VAT
Over £300 ex. VAT £35 ex. VAT

View Full Delivery Policy

Returns

We offer a 30 day returns policy on any faulty products.

View Full Returns Policy


Key Features

  • {{construction}} Made from durable galvanised steel
  • {{architecture}} Vertical framework for fixing plasterboard to masonry
  • {{device_hub}} Creates a cavity space suitable for insulation or service runs
  • {{workspace_premium}} Slots into GL2 channels as part of a wall lining framework

Technical Specification

Technical Specification
Product:GL1
Section:Wall Liner
Size:45 x 18mm
Length:3000mm
Sales Unit:Length
Sales Unit Coverage:3000mm
Weight:1.3kg

Product Overview

GL1 galvanised steel liner stud for use within Gypliner wall lining systems.

Serving as the primary vertical framework member, this stud provides the structural support to which plasterboard sheets are fixed. By securing directly into GL8 track and GL2 brackets, it ensures stability, accurate alignment, and dimensional consistency across the wall surface.

Its use creates a straight and true substrate, making irregular or uneven masonry walls suitable for professional finishing. This prepares the surface for plasterboard installation, enabling smooth decorative finishes and supporting additional performance upgrades where required.

Manufactured from precision-rolled galvanised steel, the stud combines strength with corrosion resistance, ensuring reliability and long-term performance in both residential and commercial settings. Dimensional stability prevents twisting or bowing during service, maintaining a consistent framework.

At 3000mm length, it is suited to standard wall heights, reducing the need for intermediate joints and enabling uninterrupted vertical support. This simplifies installation, improves framework integrity, and enhances the quality of the finished lining system.

As part of the Gypliner drylining system, GL1 studs are used with GL2 brackets, GL8 track, and associated channels to form robust, non-loadbearing frameworks ready for boarding and finishing.

Features & Benefits

  • Defined system role: Provides the vertical support framework within wall lining systems, forming the base structure for plasterboard linings.
  • Accurate wall preparation: Creates a straight, stable, and dimensionally consistent substrate for smooth wall finishes.
  • Galvanised steel construction: Strong, rigid, and corrosion-resistant for long-term performance in varied environments.
  • Dimensional stability: Maintains alignment without twisting or bowing, ensuring reliable framework integrity.
  • System integration: Used in combination with GL2 brackets, GL8 track, and associated channels as part of the complete Gypliner system.


Applications

  • Gypliner wall linings: Primary vertical framework element for non-loadbearing drylining systems.
  • Plasterboard fixing: Provides a secure substrate for attaching plasterboard sheets in residential, commercial, or refurbishment projects.
  • Performance frameworks: Forms part of systems designed to enhance acoustic, thermal, and fire performance.
  • Refurbishment projects: Ideal for correcting irregular or poor-quality wall surfaces to prepare for decorative finishes.


Installation Guidance

  • Preparation: Fix GL8 track to floor and ceiling as base and head channels before inserting GL1 studs.
  • Stud positioning: Insert studs into the track and align with GL2 brackets fixed to the substrate at specified centres.
  • Alignment checks: Ensure studs are plumb and framework is square to achieve a straight and even wall surface.
  • Stud spacing: Position studs at standard centres (typically 600mm, or as specified) to align with plasterboard sheet sizes.
  • Service integration: Allow for cabling, insulation, or pipework within the cavity prior to boarding where required.
  • Handling care: Avoid distortion or over-cutting of studs to preserve dimensional accuracy and system performance.


Compliance & Performance

  • Material specification: Precision-rolled galvanised steel for strength, rigidity, and corrosion resistance.
  • System compatibility: Designed specifically for use with GL2 brackets, GL8 track, and other Gypliner components.
  • Structural performance: Provides stable vertical support for non-loadbearing drylining frameworks.
  • Important note: Intended for use only within non-loadbearing drylining systems.
