9mm Elliotis Softwood Pine Structural Plywood 2440mm x 1220mm (8' x 4')

URN: 4002032

Select Thickness

£12.40ex. VAT £4.16 per m2
£12.40ex. VAT
£4.16 per m2
Coverage required
m
m
Based on your total area of m2 (inc. 10% wastage) - of these are required (actual coverage of m2)

We recommend purchasing at least 10% extra product to allow for errors, damages or obstacles

Elliotis 9mm softwood plywood, otherwise known as roofing plywood, serves as a cost-effective alternative to hardwood plywood in walls or floors where strength is key.

Select Thickness

Nationwide Delivery

Wed 4 Jun

Order by 2pm today
  • 6hrs
  • 47mins
  • 54secs

Delivery & Returns Info

Make 3 payments of £4.13 with PayPal Learn more
Make 3 payments of £4.13 with Klarna Learn more
Make 4 payments of £3.10 with Clearpay Learn more

Product Overview

Elliotis 9mm softwood plywood, otherwise known as roofing plywood, serves as a cost-effective alternative to hardwood plywood in walls or floors where strength is key.

URN: 4002032
£12.40ex. VAT

Delivery & Returns Information

All delivery charges are shown in your basket and are dependent on the total value of items in your basket based on product category.

This charge is based on delivery to mainland UK excluding the following postcodes: AB, CF, DD, DG, KW, IV, LD, LL, NP, PH, SA and SY. If your delivery address is in any of these postcode areas a member of our customer service team will contact you prior to processing your order should an additional delivery charge apply. We do not offer deliveries outside the UK mainland.

Standard (Nationwide) Delivery

Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products
ORDER VALUE DELIVERY CHARGE
Under £100 £25 ex. VAT
Between £100 - £250 ex. VAT £20 ex. VAT
Over £250 ex. VAT FREE
Insulation, Plasterboard and Drylining Products
ORDER VALUE DELIVERY CHARGE
Under £150 £50 ex. VAT
Between £150 - £400 ex. VAT £35 ex. VAT
Over £400 ex. VAT FREE
SuperFOIL and YBS products
ORDER VALUE DELIVERY CHARGE
Each item £10 ex. VAT
Over £350 ex. VAT of 1 brand FREE
Screws & Fixings and Adhesives & Sealants
ORDER VALUE DELIVERY CHARGE
Under £100 £7.50 ex. VAT
Over £100 ex. VAT FREE

Express Delivery

Express Delivery - Insulation and Plasterboard & Drylining
ORDER VALUE DELIVERY CHARGE
Under £400 £50 ex. VAT
Over £400 ex. VAT £35 ex. VAT
Express Delivery - Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products
ORDER VALUE DELIVERY CHARGE
Under £300 £50 ex. VAT
Over £300 ex. VAT £35 ex. VAT

View Full Delivery Policy

Returns

We offer a 30 day returns policy on any faulty products.

View Full Returns Policy

Key Features

  • {{fitness_center}} High load-bearing capacity
  • {{checklist}} Suitable for structural and non-structural applications

Technical Specification

Technical Specification
Bond Class:BS EN636-2
Material Type:Softwood
Thickness:9mm
Width:1220mm
Length:2440mm
Sales Unit:Sheet
Sales Unit Coverage:2.98m2
Weight:16kg
Application:Floors, roofs, walls, hoardings, temporary protection
Edge:Square
Indoor/Outdoor Usage:Exterior (if treated), Interior
Finish:Restored and sanded
Country of Origin:Brazil
Grade:C+ / C
Wood Species:Pine
Formaldehyde Level:E1 (low)


Colour and finish are representative only and may vary slightly as this is a natural product.

What is Elliotis 9mm Softwood Plywood?

9mm Elliotis Pine Plywood is a versatile structural-grade softwood panel, supplied in standard 2440mm x 1220mm (approximately 8' x 4') sheets. Each sheet covers approximately 2.98m² and has a typical weight of around 16kg.

Sourced from Pine grown in Brazil, this engineered wood panel is manufactured to meet the requirements of BS EN 636-2, designating it for structural use in humid conditions (Service Class 2). This means it can withstand exposure to moisture that may occur occasionally, for instance, during construction phases, provided it is allowed to dry and any cut edges are appropriately sealed.

Valued as a dependable roofing plywood and a highly cost-effective structural alternative to many hardwood plywoods, this 9mm Elliotis Pine board is a common choice for constructing walls (as sheathing), floors (as underlayment or a subfloor in light applications), site hoardings, and for temporary protection measures.

It is suitable for both interior applications and exterior applications where it is treated (all faces and edges sealed with an appropriate protective finish) and shielded from direct, prolonged weather exposure, aligning with its EN636-2 classification.

Grade: C+ /C

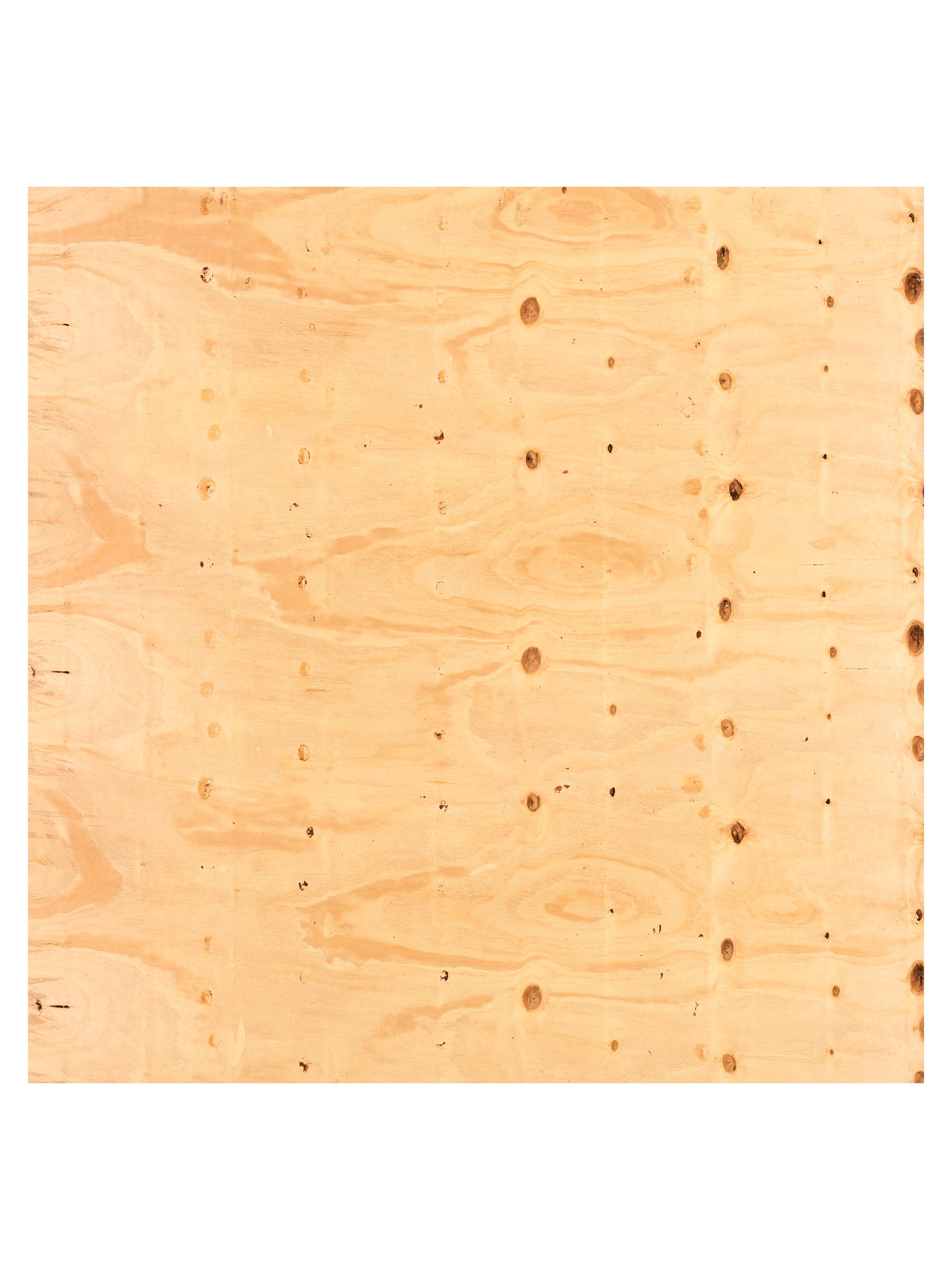

This plywood features a C+/C veneer grade. The C+ face is the better surface, presenting a smooth, sanded finish suitable for general construction purposes and some visible applications where a utility finish is acceptable.

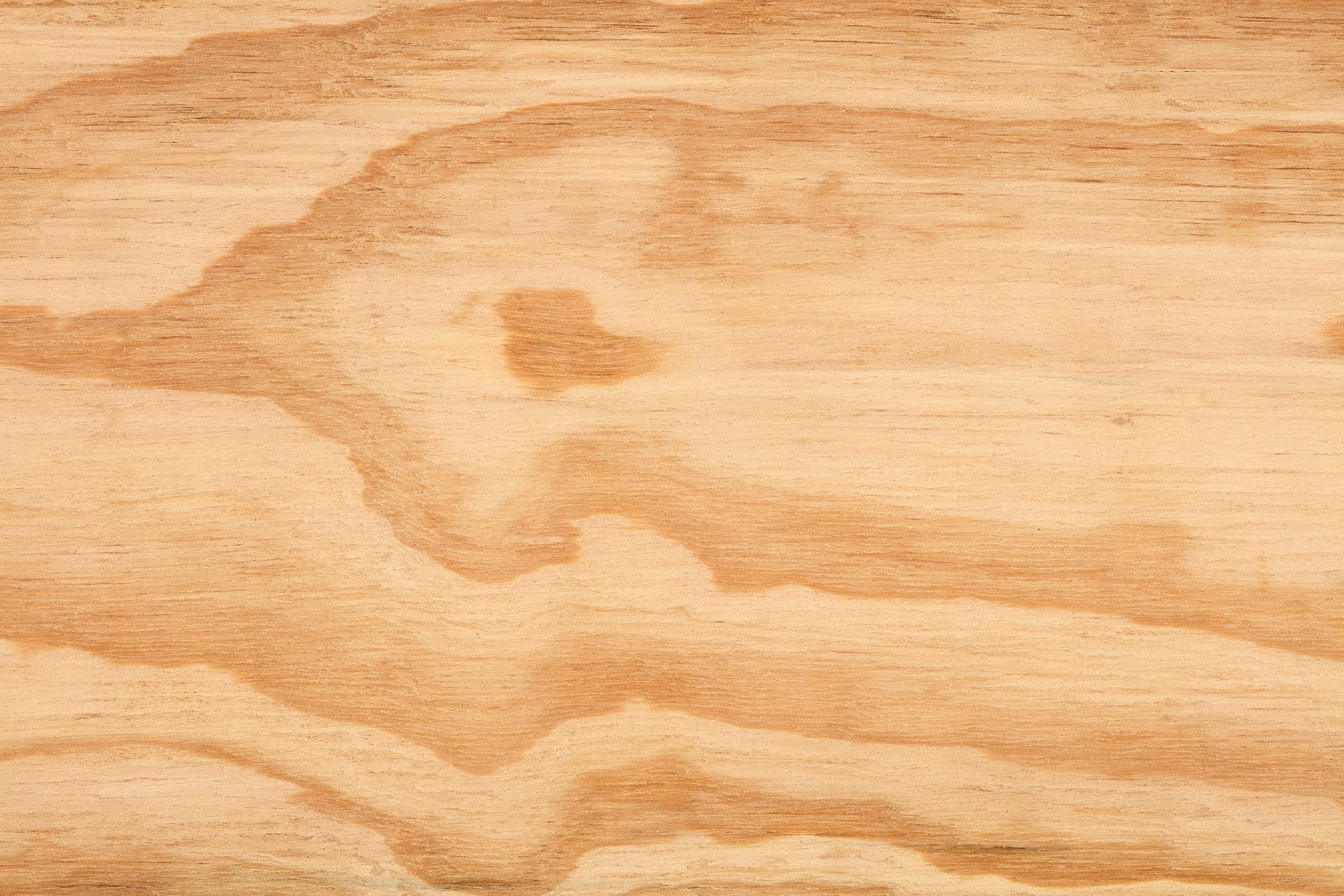

The reverse C grade face may exhibit more natural wood characteristics, knots, and minor imperfections. As a natural pine product, variations in grain and the presence of sound knots are inherent.

Applications

  • Wall Sheathing (Racking Strength): Used on timber frame walls to provide racking resistance (preventing sideways movement) and create a solid backing for cladding systems or internal linings.
  • Roof Decking (Sarking): Forms a solid deck over roof joists or rafters in pitched roof constructions, providing a substrate for roofing felt/underlayment and the final roof covering (e.g., tiles or shingles).
  • Flooring Underlayment: Can be used as an underlayment over existing timber subfloors or joists (with appropriate spacing, typically not exceeding 400mm centres for 9mm) to provide a smooth, level base for certain types of floor coverings. It is generally for light domestic use in this thickness.
  • Site Hoarding & Temporary Structures: A common and economical choice for creating secure temporary barriers, site enclosures, and protection screens on construction sites.
  • General Joinery & Carpentry: Suitable for utility applications such as basic shelving (with adequate support), workbenches, packing cases, crates, and various DIY construction projects.
  • Shuttering (Light-Duty Formwork): Can be used for creating simple moulds for pouring concrete in non-critical applications where a high-quality concrete finish is not the primary concern and for limited re-uses.
  • Soffits and Protected Fascia Components: In sheltered locations when primed, painted, and all edges are thoroughly sealed.


Benefits

  • Cost-Effective: As a more affordable alternative to hardwood plywood, it provides significant cost savings without compromising on quality or performance.
  • Versatile Applications: Its broad range of applications makes it a highly versatile material, suitable for everything from structural work to fine joinery.
  • Exceptional Strength and Stability: Excellent load-bearing properties ensure it can handle substantial weight and stress, suiting it for use in critical structural applications.
  • Ease of Use: Can be cut, screwed, glued, and painted, facilitating a smooth and efficient construction process. Its compatibility with both hand and machine tools enhances its utility in various settings.
  • Interior and Covered Exterior Use: While primarily designed for interior use, it can also be employed in covered exterior applications if properly treated, offering limited resistance to moisture during construction.
