Key Features
- {{control_point_duplicate}} 160mm compatible diameter
- {{u_turn_left}} 30-degree angle for moderate directional offset
- {{my_location}} Double socket for targeted connections
- {{more_time}} Durable construction for long-term use
Technical Specification
| URN: | 7001090 |
|---|---|
| Material Type: | PVC |
| Diameter: | 160mm |
| Sales Unit: | Each |
| Angle: | 30 Degree |
| Colour: | Terracotta |
| Style: | Double Socket |
| Manufacturer's Reference: | 6D564 |

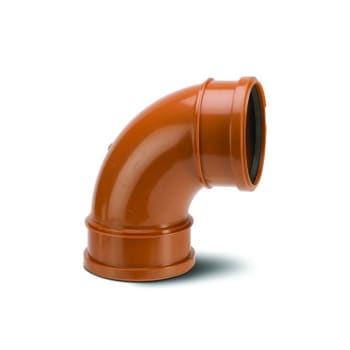

Product Overview
160mm Underground Drainage Bend manufactured from uPVC, conforming to BS EN 1401-1 for use in high-capacity foul and surface water systems.
Its uPVC construction provides strength, durability, and long-term resistance to corrosion and chemical attack.
This fitting connects via a double push-fit socket to plain-ended 160mm pipework, ensuring a secure and watertight joint without additional couplers.
Supplied as a 30° bend, it is used to offset pipe runs or bypass small obstacles in drainage layouts.
Features & Benefits
- Robust uPVC body: Strong and durable material for long service life underground.
- Corrosion resistant: Will not rust, rot, or degrade when buried.
- Watertight push-fit seal: Ensures leak-free connections in foul and surface water systems.
- Lightweight handling: Easy to transport, cut, and install on site.
- Quick installation: Pipes push directly into the socket without special tools.
- 30° bend: Provides moderate directional offset for obstacle avoidance.
- Double socket connection: Joins two 160mm plain-ended pipes directly.
Applications
- High-capacity drainage: Used in larger residential, commercial, or civil engineering systems.
- Pipe offsets: Used to reroute runs around minor foundations or service lines.
- Obstacle bypassing: Diverts pipe runs smoothly underground.
- Foul drainage: For sewer and soil systems.
- Surface water systems: Common in stormwater management.
- Repair work: Applied when altering existing runs.
Installation Guidance
- Preparation: Cut pipe ends square, chamfer edges, and clean before joining.
- Jointing: Push plain-ended pipe into socket until fully seated against seal.
- Seal care: Avoid damaging rubber seal during insertion.
- Bedding: Position on granular material to ensure support.
- Backfilling: Use granular surround before final backfill to protect fitting.
Compliance & Performance
- Standard: Manufactured to BS EN 1401-1.
- Material: Unplasticised PVC (uPVC).
- Connection: Double socket push-fit.
- Applications: Underground foul and surface water systems.
- Durability: Resistant to corrosion, chemicals, and ground conditions.
- Important note: Installation must comply with Building Regulations Part H.
