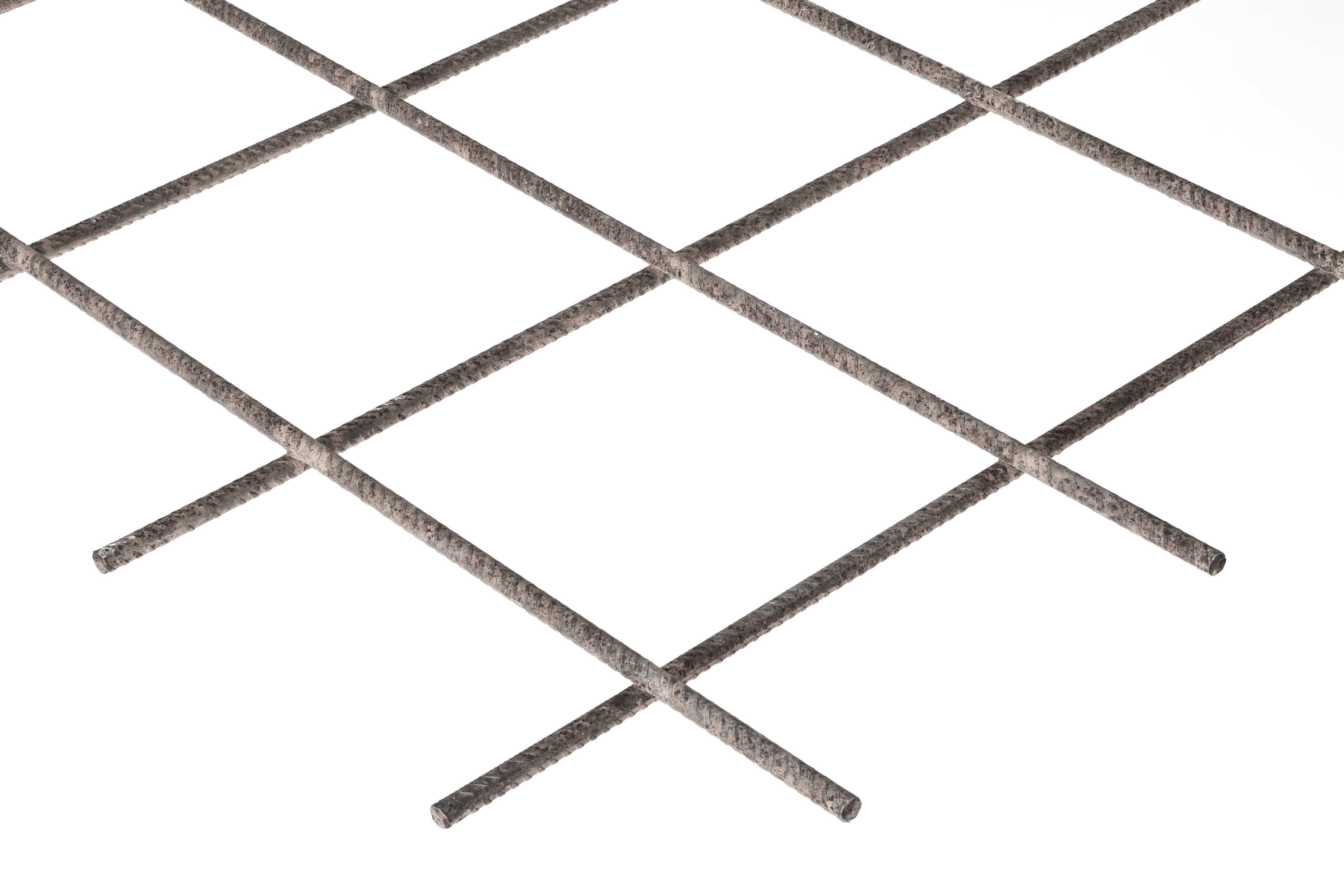

10mm A393 High Tensile Steel Reinforcement Mesh Sheet 2000mm x 3600mm

URN: 7002006
£94.99ex. VAT
£94.99ex. VAT

A393 reinforcement mesh fabric is a widely-used reinforcement solution that serves as an integral component of concrete structures, including walls, roads and other structures.

Nationwide Delivery

Tue 31 Jan

Product Overview

A393 reinforcement mesh fabric is a widely-used reinforcement solution that serves as an integral component of concrete structures, including walls, roads and other structures.

10mm A393 High Tensile Steel Reinforcement Mesh Sheet 2000mm x 3600mm

URN: 7002006
£94.99ex. VAT

Delivery & Returns Information

All delivery charges are shown in your basket and are dependent on the total value of items in your basket based on product category.

Standard (Nationwide) Delivery

ORDER VALUE DELIVERY CHARGE
Insulation, Plasterboard and Drylining
Under £150 ex. VAT £75 ex. VAT
Between £150 - £300 ex. VAT £50 ex. VAT
Between £300 - £500 ex. VAT £25 ex. VAT
Over £500 ex. VAT FREE
Building Material Products
Under £300 ex. VAT £50 ex. VAT
Between £300 – £500 ex. VAT £25 ex. VAT
Over £500 ex. VAT FREE
Accessories
Under £100 ex. VAT £7.50 ex. VAT
Over £100 ex. VAT FREE
SuperFOIL and YBS products
Each item £10 ex. VAT
Over £350 ex. VAT of 1 brand FREE

Express Delivery

ORDER VALUE DELIVERY CHARGE
Under £300 ex. VAT £75 ex. VAT
Over £300 ex. VAT £50 ex. VAT

This charge is based on delivery to mainland UK excluding the Scottish Highlands. If your delivery address is in the Scottish Highlands a member of our customer service team will contact you prior to processing your order should an additional delivery charge apply. We do not offer deliveries outside the UK mainland.

View Full Delivery Policy

Returns

We offer a 30 day returns policy on any faulty products.

View Full Returns Policy

Key Features

  • A suitable solution for reinforcing concrete
  • A393 sheets are CARES APPROVED products
  • Merchant size: 3.6m (3600mm) x 2m (2000mm)
  • Wire size: 10mm
  • Manufactured nominal pitch of wire dimensions of 200mm x 200mm
  • Total sheet weight of 70.96kg
  • Fully CE certified
  • Welded to BS 4483:2005 specifications

Technical Specification

Technical Specification
Material Type:Steel
Thickness:10mm
Length:3600mm
Sales Unit:Sheet

Product Description


A393 sheets are an incredibly strong mesh most commonly utilised in heavy-duty industrial concrete walls and floor slabs.


These sheets are widely used in the construction industry to provide concrete structures with increased tensile strength against lateral force. Their utilisation serves to improve the overall strength and rigidity of a structure.


A393 sheets feature 10mm wires spaced at 200mm intervals, making them ideal for structures that feature a depth of 200m or more.

A393 Reinforcing Steel Mesh Sheet Applications

A393 mesh is the go-to material for heavy industrial concreting.


It can be used to reinforce walls and floors that are at least 200mm in thickness or depth.


We recommend A393 for use in the following applications:

  • Heavy duty concrete slabs for roadways and car parks
  • Walls and slabs in concrete flooring

A393 3.6M x 2M Mesh Sheet Specifications

  • A suitable solution for reinforcing concrete
  • A393 sheets are CARES APPROVED products
  • Merchant size: 3.6m (3600mm) x 2m (2000mm)
  • Wire size: 10mm
  • Manufactured nominal pitch of wire dimensions of 200mm x 200mm
  • Total sheet weight of 70.96kg
  • Fully CE certified
  • Welded to BS 4483:2005 specifications

The Benefits Of Reinforcing Concrete With A393 Mesh

While a concrete slab or wall is durable for the most part and will withstand compression force, it is also prone to cracking from load bending tensile force.


For this reason, implementing reinforcement measures when laying concrete is imperative in high-stress environments.

Let's take a look at a few key reasons why reinforcing concrete is advantageous:

  • It minimises maintenance requirements - Reinforcement ensures a structure stands the test of time
  • Helps reduce the likelihood of cracking and structural damage
  • Ensures loads are distributed in a uniform manner
  • Steel and concrete have a similar response to temperature fluctuations, this material union, therefore, minimises internal stress within a structure


Here at Materials Market, we stock a wide variety of concrete reinforcement mesh to assist you in any concreting project. From D49 Steel Reinforcement Mesh 4.8m x 2.4m to  A142 Steel Reinforcement Mesh, we've got you covered.

What Accessories Can Be Used To Fix Reinforcement A393 Mesh?

Reinforcing mesh should be supported at regular intervals from below with the following purpose-made accessories:

  • Hystools
  • Wire Ring Spacers
  • Concrete Bar Spacers
  • Grade Plate Spacers
  • Circular Wire Spacers

How Does Reinforcing Steel Mesh Work To Strengthen Concrete?

Reinforcing steel mesh is embedded within freshly poured concrete during the casting process. As the concrete dries and solidifies it marries with the mesh, creating a composite material - a unity which allows for the transference of stress between the two elements.

The contours on the steel bars facilitate a solid bond between the concrete and the metal, resulting in a singular structural unit; this enables the concrete to tackle compressive stresses while the ductile nature of steel mesh works to withstand tensile stresses.

The 3 Main Types of Stresses In Construction

  • Tensile (pulling apart)
  • Compressive (pushing together)
  • Shear (sliding stress of a parallel cross-section material)
