62.5mm EcoTherm Eco-Liner Insulated Plasterboard 2400mm x 1200mm

What Is 62.5mm EcoTherm?

62.5mm EcoTherm Eco-Liner plasterboards are designed to streamline your insulation project. The 2-in-1 nature of the boards merges the thermal benefits of PIR (polyisocyanurate) with the structural benefits of plasterboard drylining.

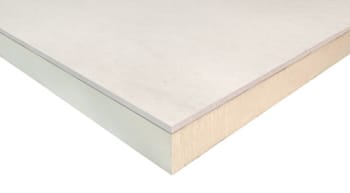

The boards comprise a fibre-free rigid polyisocyanurate (PIR) insulation core bonded to 12.5mm tapered edge gypsum plasterboard using proprietary gypsum adhesive.

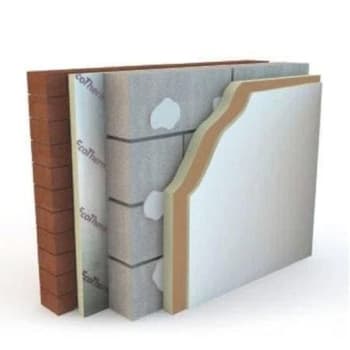

62.5mm EcoTherm Eco-Liner Insulated Plasterboard is suitable for internal wall insulation for solid, cavity or timber frame walls in both new build and existing properties.

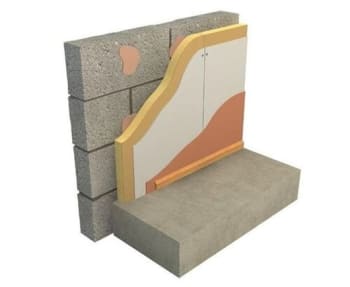

Eco-Liner is suitable for both adhesive dot and dab application or mechanically fixed systems and ideal for refurbishing existing walls to a higher thermal performance.

Where Is 62.5mm EcoTherm Eco-Liner Used?

• Walls - solid, cavity or timber frame walls
• Room-in-the-roof applications
• Pitched roofs/Cold flat roofs
• Both new build and renovations

62.5mm EcoTherm Eco-Liner Specifications

62.5mm EcoTherm Eco-liner comprises a robust PIR fibre-free insulation core bonded to 12.5mm tapered edge gypsum plasterboard; the ivory face of which enables a flat seamless finish using either skim coat plaster or seamless drywall jointing techniques (by manufacturer’s guidance).

With an impressively low thermal conductivity value of 0.022 W/mK, you can be sure that EcoTherm will do a marvellous job of upgrading the thermal performance of existing walls.

The boards also respond quickly to heating systems whilst providing a cost-effective means of reducing CO2 emissions for compliance with Building Regulations.

Let's check the specs:

• Zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP)
• Thermal conductivity: 0.022 W/mK
• Suitable for both direct bonding (‘dot and dab’) and mechanically fixed installation techniques
• Features an integral vapour control layer
• Combines insulation & drylining
• BBA certified
• Compressive Strength: 140kPa
• Fire Performance: Class 0 as defined by the Building Regulations

62.5mm EcoTherm Eco-Liner Certifications

The product is in compliance with:

• BBA Approved PIR foam produced according to BS EN 13165: 2008
• Gypsum plasterboard complies with BS EN 520: 2004
• Plasterboard component is Class 0 or low risk in accordance with BS 476-6: 1989 and BS 476-7: 1997
• Green Guide Rating: A+
• Recommended by the Energy Saving Trust

EcoTherm Eco-Liner Storage

It is essential that you keep your EcoTherm boards off the ground and under a cover on a dry, level surface.

Ensure they are kept in a well-ventilated area and protected from rain, snow and prolonged exposure to sunlight - storing them indoors, where possible.

If the boards do end up getting wet they cannot be used - so be extra careful.
