47mm x 250mm Standard Masonry Joist Hanger
| 12+ units | 21+ units | 30+ units |
| £4.87ex. VAT | £4.72ex. VAT | £4.62ex. VAT |
Masonry joist hanger built for embedding into block or brickwork. Supports floor and ceiling joists. Sized for 47mm_wide joists and 250mm joist depth.
Nationwide Delivery
Tue 4 Nov
- 0days
- 22hrs
- 41mins
- 23secs
Learn more
Pay in 3 interest-free payments
Split your purchase of £5.13 into 3 with no sign-up fees or late fees.
£1.71
today
£1.71
1 month
£1.71
2 months
How it works
- Choose PayPal at checkout to pay later with Pay in 3.
- Complete your purchase with the first payment today.
- Remaining payments are taken automatically.
Pay in 3 is a form of credit, so carefully consider whether the purchase is affordable and how you will make the repayments. Be aware of the possible impact of using Pay in 3 and of missing payments, including making other borrowing more difficult or more expensive. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Available for purchases of £30 to £2,000. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.
Learn more
Buy now. Pay with Klarna at your own pace.
Get what you need for your next project, choose how you pay.
Pay in 30 days
£5.13
Pay in full
Klarna's Pay in 30 days is an unregulated credit agreement. Borrowing more than you can afford or paying late may negatively impact your financial status and ability to obtain credit. 18+, UK residents only. Subject to status. T&Cs and late fees apply.
Pay over time
£1.71
Every 30 days
Pay in 3
£1.71
today
£1.71
in 30 days
£1.71
in 60 days
Klarna's Pay in 3 is an unregulated credit agreement. Borrowing more than you can afford or paying late may negatively impact your financial status and ability to obtain credit. 18+, UK residents only. Subject to status. T&Cs and late fees apply.
How it works
- At checkout select Klarna.
- Choose your payment plan.
- Different payment plans may be shown depending on the purchase amount and credit score.
- Complete your checkout.
- The amount will be charged based on the payment plan you chose.
Learn more
Pay in 4 interest-free payments
Split your purchase of £5.13 into 4 with no sign-up fees or late fees. Your purchase will be split into 4 payments, payable every 2 weeks
£1.28
today
£1.28
second payment
£1.28
third payment
£1.28
fourth payment
How it works
- Choose Clearpay at checkout to pay later with Pay in 4.
- Complete your purchase with the first payment today.
- Remaining payments are taken automatically.
Clearpay is unregulated credit. Use responsibly. 18+, T&Cs and late fees apply at clearpay.co.uk/en-GB
Clearpay lends you a fixed amount of credit so you can pay for your purchase over 4 instalments, due every 2 weeks. Ensure you can make repayments on time. You must be 18+ and a permanent UK resident (excl Channel Islands). Clearpay charges a £6 late fee for each late instalment and a further £6 if it’s still unpaid 7 days later. Late fees are capped at £6 for orders under £24 and the lower of £24 or 25% of the order value for orders over £24. Missed payments may affect your ability to use Clearpay in the future and your details may be passed onto a debt collection agency working on Clearpay’s behalf. Clearpay is credit that is not regulated by the Financial Conduct Authority. T&Cs and other eligibility criteria apply at clearpay.co.uk/terms
Product Overview
Masonry joist hanger built for embedding into block or brickwork. Supports floor and ceiling joists. Sized for 47mm_wide joists and 250mm joist depth.
Delivery & Returns Information
How Our Delivery Works
We work with a nationwide network of trusted suppliers. As a result, items in your basket may be supplied by different suppliers and delivered separately. Where this applies, you'll see multiple delivery charges at checkout. We always aim to group products from the same supplier to keep delivery costs as low as possible.
Delivery Areas & Charges
Delivery charges listed on our website apply to mainland UK, excluding the following postcode areas: AB, CF, DD, DG, FK, KW, IV, LA, LD, LL, NP, PA, PH, SA, SY
If your delivery address falls within one of these postcode areas, we’ll be in touch before processing your order to confirm any additional delivery costs.
Please note: We do not currently offer delivery outside the UK mainland.
Standard (Nationwide) Delivery
| Screws & Fixings and Adhesives & Sealants | |
|---|---|
| ORDER VALUE | DELIVERY CHARGE |
| Under £50 | £5 ex. VAT |
| Over £50 ex. VAT | FREE |
| Insulation, Plasterboard and Drylining Products | |
| ORDER VALUE | DELIVERY CHARGE |
| Under £350 | £35 ex. VAT |
| Over £350 ex. VAT | FREE |
| Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products | |
| ORDER VALUE | DELIVERY CHARGE |
| Under £300 | £10 ex. VAT |
| Over £300 ex. VAT | FREE |
Express Delivery
| Express Delivery - Insulation and Plasterboard & Drylining | |
|---|---|
| ORDER VALUE | DELIVERY CHARGE |
| Under £400 | £50 ex. VAT |
| Over £400 ex. VAT | £35 ex. VAT |
| Express Delivery - Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products | |
| ORDER VALUE | DELIVERY CHARGE |
| Under £300 | £50 ex. VAT |
| Over £300 ex. VAT | £35 ex. VAT |
Returns
We offer a 30 day returns policy on any faulty products.
Key Features
- {{settings_ethernet}} Connects timber joists to masonry or concrete blockwork
- {{balance}} Deep seat section distributes weight evenly
- {{shield}} Zinc coating provides lasting protection against rust
- {{fitness_center}} Made from 2mm galvanised steel
Technical Specification
| Material Type: | Galvanised Steel |
|---|---|
| Gauge: | 2mm |
| Width: | 47mm |
| Length: | 250mm |
| Sales Unit: | Each |
| Weight: | 0.68kg |
| Fire Rating: | A1 Non-Combustible |
Product Overview

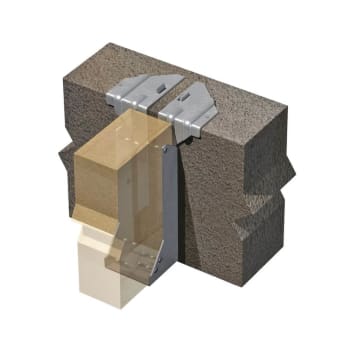

Standard masonry joist hanger with a 47mm width and 250mm leg length. Designed for connecting timber joists to masonry or concrete blockwork, providing a secure, load-bearing support where timber meets structural walls.
Manufactured from 2mm thick galvanised steel, the hanger offers excellent rigidity and long-term corrosion protection under normal internal or sheltered external conditions. The precision-formed side flanges ensure consistent fit and alignment, maintaining correct joist positioning during installation.
Suitable for heavy or structural load applications where maximum embedment depth and bearing area are required, it offers a robust seat profile to distribute load evenly across the bearing surface.
Its dimensions of 47mm x 250mm ensure compatibility with standard 47mm-wide joists, delivering the deepest embedment and highest load transfer within the range.
Features & Benefits
- Durable construction: Made from 2mm galvanised steel for strength, stiffness, and long service life.
- Corrosion resistance: Zinc coating provides lasting protection against rust in dry or damp environments.
- Secure load transfer: Deep seat section distributes weight evenly into the supporting masonry.
- Fire performance: Rated A1 Non-Combustible, suitable for use in fire-rated building assemblies.
- Ease of installation: Pre-punched fixing holes simplify positioning and ensure consistent anchoring.
- Application suitability: 47mm internal width accommodates standard structural joists, while the 250mm leg length offers the deepest embedment and highest load transfer within the range.
Applications
- Timber floor construction: For securely supporting timber joists built into block or brick walls.
- Roof structures: Used where ceiling or rafter joists connect to masonry walls.
- Timber decking: Suitable for fixing timber deck joists into masonry supports.
- Refurbishment works: Ideal for strengthening or replacing joist connections in existing masonry.
Installation Guidance
- Positioning: Set the hanger in place before laying the joist, ensuring the bearing is fully supported by masonry.
- Fixing to masonry: Use suitable nails or anchor fixings in the pre-punched holes to secure the hanger.
- Joist seating: Insert the joist flush into the hanger seat, ensuring full contact with the bearing plate.
- Alignment check: Confirm level and line before final fixing to maintain uniform joist spacing.
Compliance & Performance
- Material specification: Formed from 2mm thick galvanised steel for consistent mechanical performance.
- Corrosion protection: Zinc coating to BS EN 10346 for reliable anti-corrosion performance.
- Fire rating: Classified A1 Non-Combustible in accordance with EN 13501-1.
- Load capacity: Designed for standard domestic floor and roof loading conditions.
- Manufacturing standard: Produced under controlled conditions to relevant UK and EU building hardware standards.
- Important note: Always ensure adequate masonry strength and correct fixings are used to achieve rated load performance.
