Key Features
- {{fitness_center}} Inherent resistance to corrosion and UV degradation
- {{format_color_reset}} Provides a completely impermeable barrier to water
- {{waterfall_chart}} Prevents leaks at critical building junctions
- {{recycling}} Recyclable
Technical Specification
Product: | Code 4 |
---|---|
Width: | 390mm |
Length: | 3m |
Sales Unit: | Each |
Weight: | 24kg |
Product Overview
24kg Code 4 Roll of Milled Lead Flashing in a 390mm width and 3m length, delivering approximately 1.17m² of coverage per roll.
Code 4 refers to a nominal thickness of 1.80mm, equating to 20.41kg per m², making it the standard grade for general-purpose flashings that balance strength with workability.
At 390mm wide, this size is suited to long aprons, stepped flashings, and parapet weatherings. The shorter roll length is ideal for smaller installations and targeted detailing.
Manufactured to BS EN 12588, the milling process produces uniform thickness, fine grain structure, and a smooth finish for reliable installation.
Its purpose is to provide a malleable, durable, and completely waterproof seal at critical junctions - including abutments, chimneys, and parapets - preventing water ingress and extending the lifespan of the building fabric.
Application of patination oil after installation is essential to prevent carbonate staining.
Features & Benefits
- Exceptional durability: Lead offers one of the longest service lives of any construction material, resisting corrosion, UV degradation, and weathering.
- Malleability: Code 4 thickness allows easy dressing and shaping with hand tools to form complex roof details.
- Weatherproofing: Provides a fully impermeable barrier to water ingress, protecting vulnerable roof junctions.
- BS EN 12588 compliance: Manufactured to exacting European standards with consistent thickness and composition.
- Sustainable material: Lead is 100% recyclable and frequently produced with high recycled content.
- Coverage efficiency: Each 24kg roll provides 1.17m² of flashing material, suited to extended but compact works.
Applications
- Long aprons: Provides reliable protection at chimney bases requiring extended coverage.

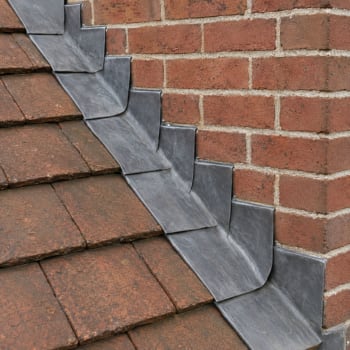

- Stepped flashings: Creates precise weatherproof detailing against masonry walls.
- Parapet cappings: Protects parapet tops from moisture ingress.

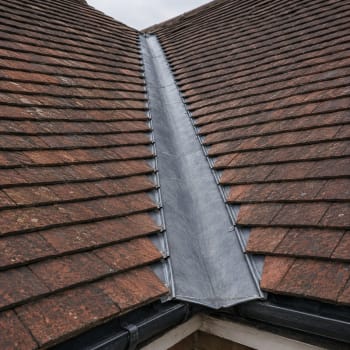

- Box gutter linings: Appropriate for lining smaller box gutters.
Installation Guidance
- Preparation: Ensure substrates are dry, sound, and free from debris.
- Fixing: Secure with lead wedges or clips, allowing for expansion and contraction.
- Lap joints: Provide minimum 150mm laps to maintain weatherproof integrity.
- Patination oil: Apply immediately after fixing to prevent staining and enhance appearance.
- Support: Provide adequate support beneath wider runs to reduce risk of fatigue cracking.
Compliance & Performance
- Thickness: Code 4, 1.80mm nominal.
- Weight: 20.41kg/m²; 24kg per roll at 390mm x 3m (1.17m²).
- Standard: Manufactured to BS EN 12588.
- Durability: Resistant to corrosion, weathering, and UV degradation.
- Sustainability: 100% recyclable, supporting responsible building practice.
