2.25m x 25m Non-Woven Geotextile Membrane / Driveway Fabric 90g (56.25m2/Roll)

Product Overview

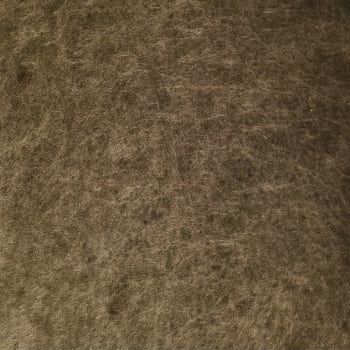

2.25m x 25m geotextile membrane, manufactured from 90g/m² non-woven polypropylene fibres, covering 56.25m2 per roll.

Its 90gsm weight classifies it as a light to medium-duty geotextile, well suited to domestic driveways, garden paths, patios, and general landscaping projects where ground conditions are stable.

The membrane performs three primary functions: separation, filtration, and stabilisation. It acts as a barrier between sub-grade soils and sub-base aggregates, prevents intermixing of construction layers, and allows water to pass freely while retaining fine particles. This combination extends the life of driveways, reduces rutting and settlement, and maintains drainage efficiency.

For very heavy vehicles, unstable ground, or commercial-grade applications, a heavier geotextile (100gsm–150gsm+) should be used to provide additional strength and load-bearing capacity.

Durable, rot-proof, and chemically inert, the fabric is easy to handle and supplied in a 2.5m x 25m roll, making it ideal for medium driveways or multiple garden beds, providing efficient coverage with fewer joins.

Features & Benefits

• Enhanced driveway longevity: Prevents sub-base aggregates from sinking into soil, extending the
• service life of driveways, paths, and patios.
• Improved drainage: Allows water to filter through while blocking soil fines, preventing waterlogging and maintaining system efficiency.
• Effective layer separation: Maintains integrity of soil, hardcore, and bedding layers.
• Reduces rutting & settlement: Distributes loads across the sub-grade to resist surface deformation.
• 90gsm non-woven construction: Balanced strength, filtration, and permeability for domestic and light commercial projects.
• Durable material: Manufactured from rot-proof, chemically inert polypropylene fibres.
• Weed suppression: Helps prevent weed growth from below, though weeds may still establish if soil or organic matter accumulates above.
• UV protection required: Must be covered promptly with soil, gravel, or paving; not suitable for long-term sunlight exposure.
• Medium roll (56.25m²): Provides efficient coverage for larger domestic projects.

Applications

• Domestic driveways: Suitable beneath gravel, block paving, or asphalt to prevent layer contamination.
• Garden paths & patios: Provides stable bases and suppresses weed growth when correctly layered.
• French drains & land drainage systems: Wraps perforated pipes or lines trenches to prevent soil clogging aggregate.
• Decking and shed bases: Separates soil from aggregate beneath smaller base constructions.
• Erosion control: Stabilises mild slopes under mulch or decorative aggregates.
• General landscaping: Provides separation between soil and decorative stone in garden features.

Installation Guidance

• Site preparation: Excavate to required depth, remove vegetation and soft spots, and compact sub-grade.
• Laying the geotextile: Unroll onto the prepared base, laying flat without folds or wrinkles.
• Overlapping: Overlap sheets by at least 300mm; increase to 500mm on softer ground. Secure laps with ground pegs if required.
• Placing aggregate: Lay MOT Type 1 or equivalent aggregate carefully to avoid fabric damage, compacting in layers.
• Subsequent layers: Install bedding sand, paving, or gravel as required for the final finish.

Compliance & Performance

• Material specification: Non-woven polypropylene geotextile membrane.
• Weight: 90g/m².
• Roll size: 2.25m x 25m (56.25m2)
• Primary functions: Separation, filtration, and light stabilisation.
• Moisture management: Allows free water flow while retaining soil fines.
• Durability: Rot-proof and resistant to soil chemicals.
•  Load capacity: Suitable for light to medium-duty domestic use; not intended for HGVs or poor ground without engineered design.
• Application limits: Not designed to bridge voids or act as a structural reinforcement layer.
• Important note: Must be fully covered after installation to prevent UV degradation.
