2m x 25m Non-Woven Geotextile Filter Membrane / Drainage Fabric 80g (50m2/Roll)

URN: 7003048
Core
£60.99ex. VAT £1.22 per m2 Get it for £47.27 ex. VAT with CORE+
£60.99ex. VAT
£1.22 per m2
Coverage required
m
m
Based on your total area of m2 (inc. 10% wastage) - of these are required (actual coverage of m2)

We recommend purchasing at least 10% extra product to allow for errors, damages or obstacles

Geotextile filter membrane for drainage and soil separation. Allows water flow while preventing soil migration. 2m x 25m roll (50m2) suits drainage runs, soakaways, and smaller retaining walls.

Nationwide Delivery

Wed 15 Oct

Order by Monday at 2pm
  • 2days
  • 21hrs
  • 10mins
  • 39secs

Delivery & Returns Info

Get Free Delivery with CORE+

Make 3 payments of £20.33 with PayPal Learn more
Make 3 payments of £20.33 with Klarna Learn more
Make 4 payments of £15.25 with Clearpay Learn more

Product Overview

Geotextile filter membrane for drainage and soil separation. Allows water flow while preventing soil migration. 2m x 25m roll (50m2) suits drainage runs, soakaways, and smaller retaining walls.

URN: 7003048
£60.99ex. VAT

Delivery & Returns Information

How Our Delivery Works

We work with a nationwide network of trusted suppliers. As a result, items in your basket may be supplied by different suppliers and delivered separately. Where this applies, you'll see multiple delivery charges at checkout. We always aim to group products from the same supplier to keep delivery costs as low as possible.

Delivery Areas & Charges

Delivery charges listed on our website apply to mainland UK, excluding the following postcode areas: AB, CF, DD, DG, FK, KW, IV, LA, LD, LL, NP, PA, PH, SA, SY
If your delivery address falls within one of these postcode areas, we’ll be in touch before processing your order to confirm any additional delivery costs.
Please note: We do not currently offer delivery outside the UK mainland.

Standard (Nationwide) Delivery

Core Products
Core
ORDER VALUE DELIVERY CHARGE
Under £300 ex. VAT £20 ex. VAT
Over £300 ex. VAT FREE

Core Delivery charges apply only when all products in an order that have equivalents are accepted as such. If even one product cannot be substituted with an equivalent, the entire order will not qualify for Core Delivery charges.

Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products
ORDER VALUE DELIVERY CHARGE
Under £300 £10 ex. VAT
Over £300 ex. VAT FREE
Insulation, Plasterboard and Drylining Products
ORDER VALUE DELIVERY CHARGE
Under £350 £35 ex. VAT
Over £350 ex. VAT FREE
Screws & Fixings and Adhesives & Sealants
ORDER VALUE DELIVERY CHARGE
Under £50 £5 ex. VAT
Over £50 ex. VAT FREE

Express Delivery

Express Delivery - Insulation and Plasterboard & Drylining
ORDER VALUE DELIVERY CHARGE
Under £400 £50 ex. VAT
Over £400 ex. VAT £35 ex. VAT
Express Delivery - Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products
ORDER VALUE DELIVERY CHARGE
Under £300 £50 ex. VAT
Over £300 ex. VAT £35 ex. VAT

View Full Delivery Policy

Returns

We offer a 30 day returns policy on any faulty products.

View Full Returns Policy


Key Features

  • {{shield}} Prevents rutting, sinking, and intermixing of layers
  • {{opacity}} Permeability and filtration characteristics
  • {{my_location}} Reduces localised stress
  • {{check_circle}} For light-duty applications

Technical Specification

Technical Specification
Material Type:Nonwoven
Width:2m
Length:25m
Sales Unit:Each
Sales Unit Coverage:50m2
Weight:4kg
Indoor/Outdoor Usage:Outdoor

Product Overview

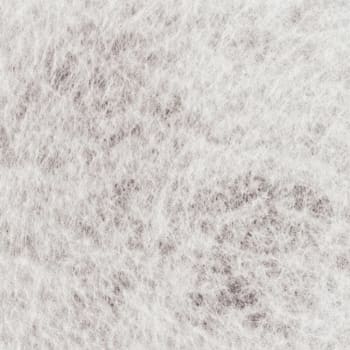

2m x 25m geotextile filter membrane, manufactured from 80g/m² non-woven polypropylene fibres, covering 50m² per roll. Designed for drainage and soil separation, it allows water to flow freely while preventing fine soil particles from washing into drainage layers.

The fabric is commonly used in soakaways, French drains, and behind retaining walls, where it preserves the efficiency of the drainage system by stopping soil fines from clogging gravel or perforated pipes. Its non-woven structure balances permeability with particle retention, ensuring long-term stability in domestic and light civil applications.

Durable, rot-proof, and chemically inert, this roll size suits drainage runs, soakaways, and smaller retaining walls.

Features & Benefits

  • Filtration: Permits water movement while preventing migration of fine soil particles.
  • Drainage efficiency: Maintains performance of gravel layers and perforated pipes.
  • Soil separation: Keeps soil and aggregate layers distinct, preserving structural stability.
  • 80gsm non-woven construction: Balanced strength and permeability for domestic drainage.
  • Durable polypropylene: Resistant to rot and unaffected by soil chemicals.
  • Easy installation: Lightweight and easy to cut, handle, and position.
  • Roll coverage: 2m x 25m (50m²) suited to small soakaways, trenches, and retaining walls.


Applications

  • Soakaways: Wraps around crates or aggregate to prevent clogging.
  • French drains: Lines trenches to keep soil fines out of drainage stone.
  • Retaining walls: Acts as a filter behind structures to prevent soil washout.
  • Landscaping drainage: Maintains performance of garden drainage systems.
  • Soil separation: Prevents intermixing of soil and stone in drainage beds.

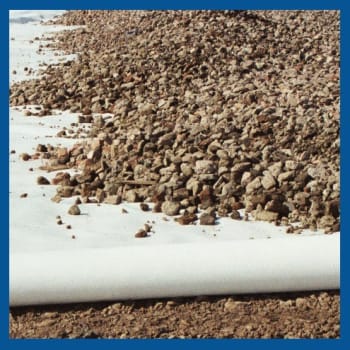

Installation Guidance

  • Preparation: Excavate trenches or soakaway pits to design specifications.
  • Positioning: Unroll fabric, laying flat against soil before backfilling with aggregate.
  • Overlapping: Overlap sheets by at least 300mm to maintain continuous coverage.
  • Wrapping: Fully encase drainage aggregate or soakaway crates where required.
  • Covering: Ensure the fabric is completely enclosed by soil or aggregate to protect from UV.


Compliance & Performance

  • Material specification: Non-woven polypropylene geotextile filter membrane.
  • Weight: 80g/m².
  • Roll size: 2m x 25m (50m²).
  • Primary functions: Filtration and soil separation.
  • Durability: Rot-proof, chemically stable, and designed for below-ground use.
  • Important note: Must be fully covered after installation to maintain performance and prevent UV degradation.
