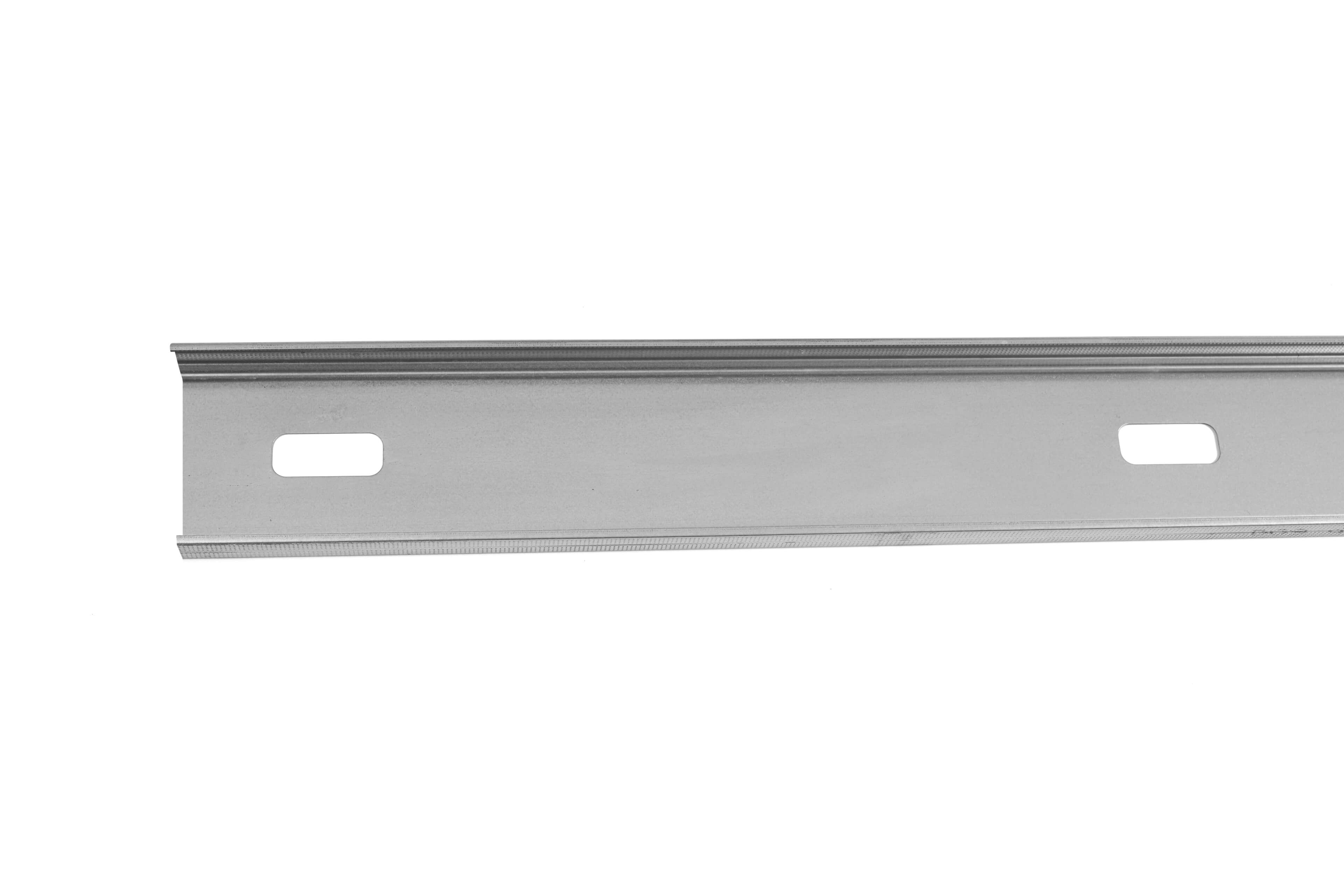

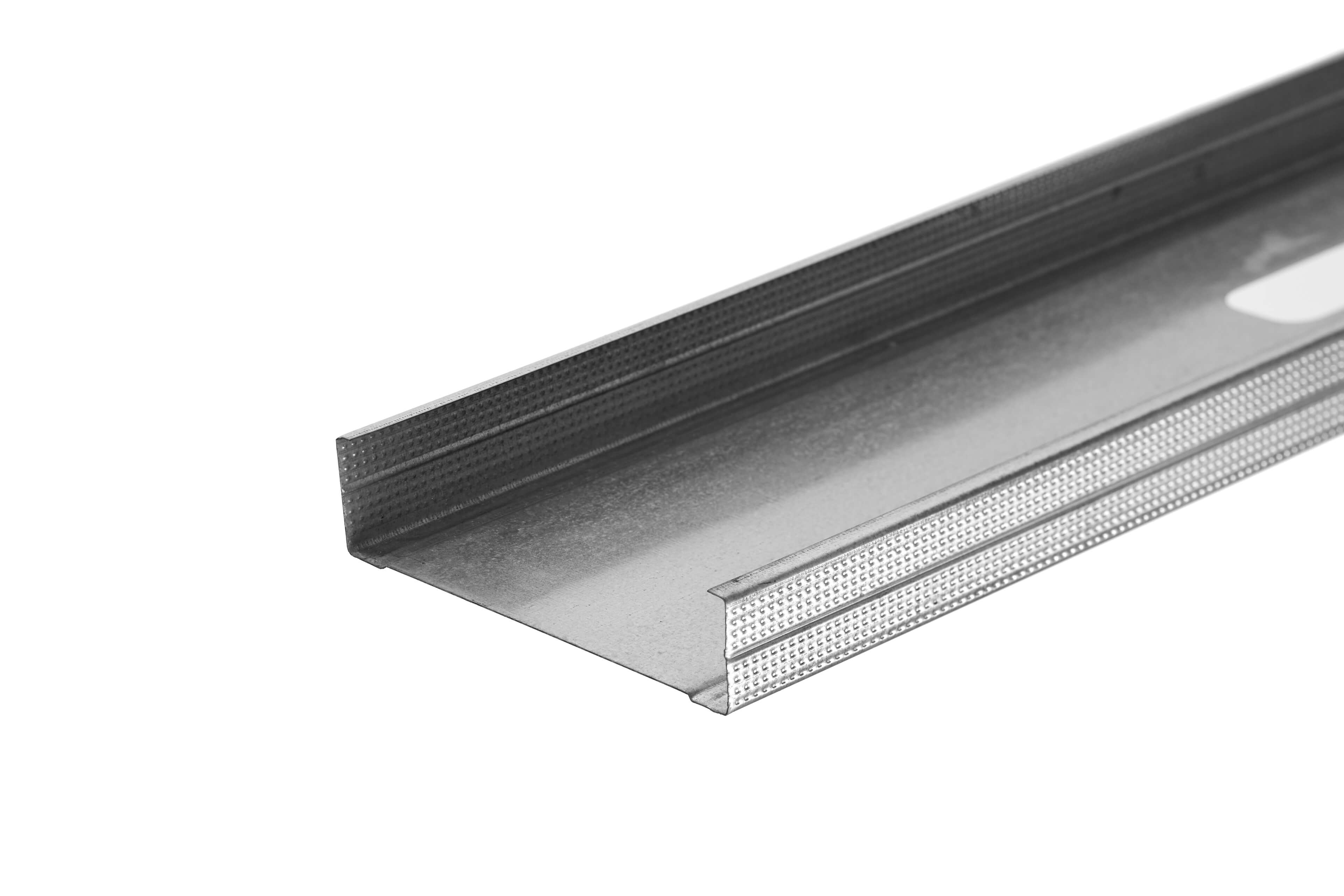

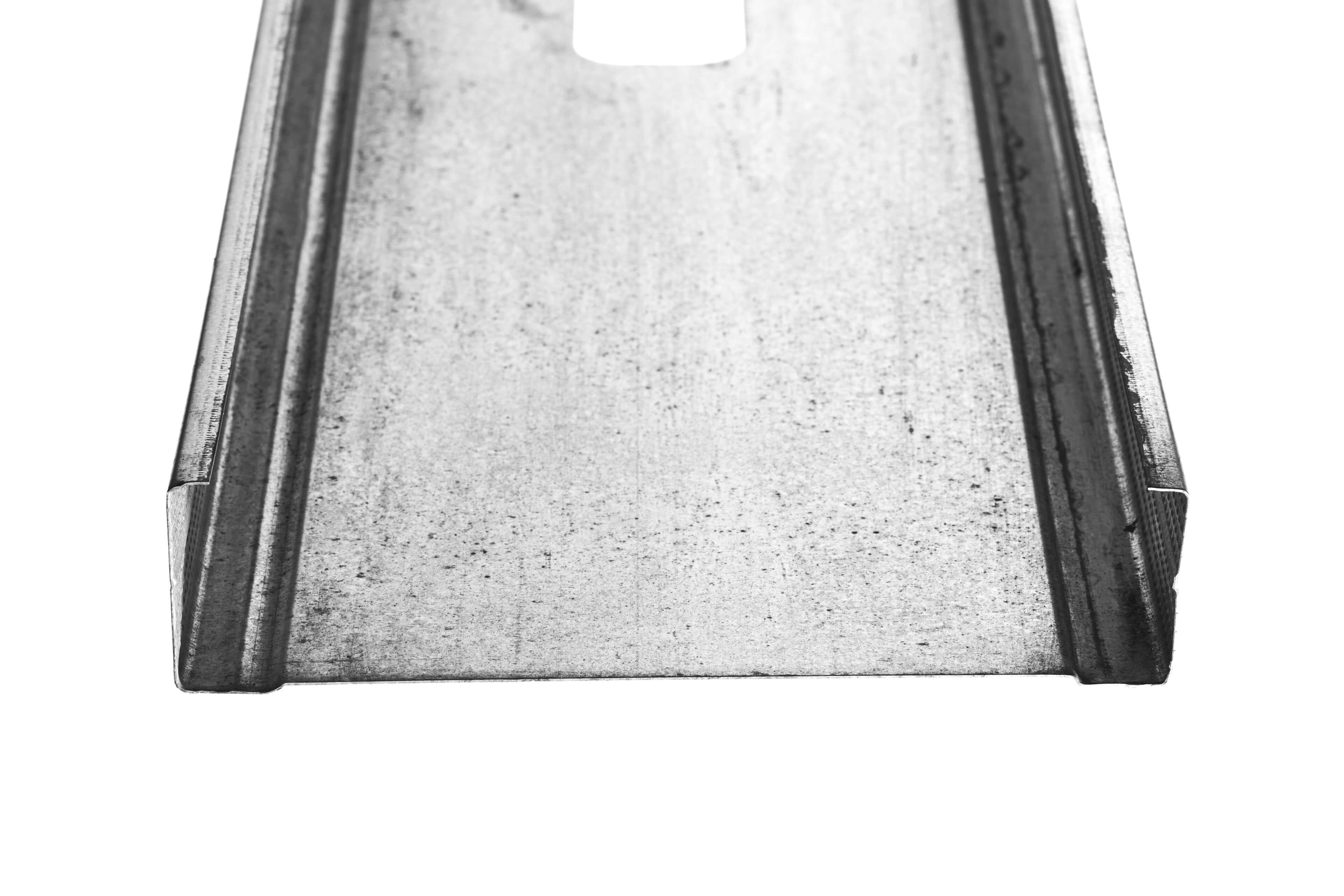

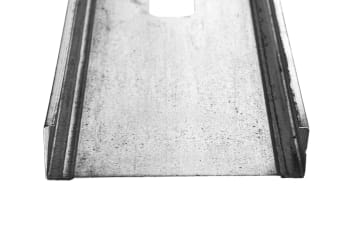

146mm Metal C Stud 3000mm

URN: 2005530
£5.67ex. VAT £1.89 per Lnm
£5.67ex. VAT
£1.89 per Lnm
Extra-wide 146mm galvanised steel stud for high-performance partitions. Creates large cavity depth for enhanced acoustic insulation and fire resistance. 3000mm length reduces joints in higher partitions.
±10 Sold in multiples of 10

Nationwide Delivery

Wed 15 Oct

Order by 2pm tomorrow
  • 21hrs
  • 50mins
  • 18secs

Delivery & Returns Info

Make 3 payments of £75.60 with PayPal Learn more
Make 3 payments of £75.60 with Klarna Learn more
Make 4 payments of £56.70 with Clearpay Learn more

Product Overview

Extra-wide 146mm galvanised steel stud for high-performance partitions. Creates large cavity depth for enhanced acoustic insulation and fire resistance. 3000mm length reduces joints in higher partitions.

URN: 2005530
£5.67ex. VAT
±10 Sold in multiples of 10
±10 Sold in multiples of 10

Delivery & Returns Information

How Our Delivery Works

We work with a nationwide network of trusted suppliers. As a result, items in your basket may be supplied by different suppliers and delivered separately. Where this applies, you'll see multiple delivery charges at checkout. We always aim to group products from the same supplier to keep delivery costs as low as possible.

Delivery Areas & Charges

Delivery charges listed on our website apply to mainland UK, excluding the following postcode areas: AB, CF, DD, DG, FK, KW, IV, LA, LD, LL, NP, PA, PH, SA, SY
If your delivery address falls within one of these postcode areas, we’ll be in touch before processing your order to confirm any additional delivery costs.
Please note: We do not currently offer delivery outside the UK mainland.

Standard (Nationwide) Delivery

Insulation, Plasterboard and Drylining Products
ORDER VALUE DELIVERY CHARGE
Under £350 £35 ex. VAT
Over £350 ex. VAT FREE
Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products
ORDER VALUE DELIVERY CHARGE
Under £300 £10 ex. VAT
Over £300 ex. VAT FREE
Screws & Fixings and Adhesives & Sealants
ORDER VALUE DELIVERY CHARGE
Under £50 £5 ex. VAT
Over £50 ex. VAT FREE

Express Delivery

Express Delivery - Insulation and Plasterboard & Drylining
ORDER VALUE DELIVERY CHARGE
Under £400 £50 ex. VAT
Over £400 ex. VAT £35 ex. VAT
Express Delivery - Timber & Sheet, Building Materials, Joinery and Gardens & Landscaping Products
ORDER VALUE DELIVERY CHARGE
Under £300 £50 ex. VAT
Over £300 ex. VAT £35 ex. VAT

View Full Delivery Policy

Returns

We offer a 30 day returns policy on any faulty products.

View Full Returns Policy


Key Features

  • {{construction}} Durable galvanised steel for long-lasting strength
  • {{straighten}} Precision-rolled profile ensures consistent dimensions
  • {{build}} Easy to cut and fix for quick installation
  • {{architecture}} Suitable for partition walls and drylining systems

Technical Specification

Technical Specification
Product:C Stud
Section:C Stud
Size:146mm
Length:3000mm
Sales Unit:Length
Sales Unit Coverage:3000mm

Product Overview

146mm Metal C Stud in a 3000mm length, manufactured from galvanised steel, providing strength, corrosion resistance, and long-term dimensional accuracy.

Precision roll-formed edges create a rigid framework that holds plasterboard securely in place and ensures walls are straight and true.

The 146mm stud offers an extra-wide cavity purpose-built for high-performance partition systems. Its depth provides ample space for enhanced acoustic insulation, complex fire-rated assemblies, and extensive service runs.

Designed for demanding commercial and institutional environments, it delivers the strength, stability, and system performance required for large-scale, technically challenging projects.

The 3000mm length reduces the need for horizontal joints in taller partitions, creating a cleaner, more stable structure with fewer weak points.

Features & Benefits

  • Galvanised protection: Zinc coating shields against corrosion during storage, installation, and service life.
  • Precision roll-formed edges: Consistent alignment and rigidity support accurate wall construction.
  • Enhanced structural stability: Wider profile supports multiple plasterboard layers for acoustic and fire performance.
  • 146mm cavity depth: Creates a substantial void for maximum insulation capacity and large-scale service integration.
  • 3000mm length: Allows higher partitions to be built with fewer interruptions.


Applications

  • High-spec acoustic partitions: Wide cavity accommodates thick insulation for maximum sound reduction.
  • Fire-resistant walls: Provides depth and stability for multi-layer plasterboard systems achieving enhanced fire ratings.
  • Commercial and institutional partitions: Suitable for demanding environments such as hospitals, schools, and offices.
  • Heavy service walls: Large cavity supports extensive cabling, ducts, or pipework.


Installation Guidance

  • Stud positioning: Fix vertically within floor and ceiling tracks at specified centres, ensuring stable alignment for taller partitions.
  • Board fixing: Secure plasterboard with drywall screws, in single or multiple layers as required.
  • Cutting: Trim studs cleanly to length using aviation snips or tin snips.
  • Service installation: Install electrical or plumbing services within the cavity before boarding.


Compliance & Performance

  • Material standard: Manufactured from cold-rolled galvanised steel to EN 14195.
  • Fire and acoustic potential: Performance is determined by partition design and boarding specification.
  • Dimensional reliability: Roll-formed process ensures consistent width and straightness.
  • Corrosion resistance: Zinc coating tested for use in dry internal environments.
  • Important note: Wear gloves and eye protection when cutting to avoid injury from sharp edges.
