Key Features
- {{join_right}} 110mm size for compatibility with standard drainage pipes
- {{u_turn_right}} 90-degree angle for effective water and waste direction
- {{fitness_center}} PVCu construction for strength and longevity
- {{all_out}} Seal and snap-cap push-fit joints
Technical Specification
| URN: | 7001066 |
|---|---|
| Material Type: | PVC |
| Diameter: | 110mm |
| Sales Unit: | Each |
| Angle: | 90 Degree |
| Colour: | Terracotta |
| Manufacturer's Reference: | D501 |
Product Overview

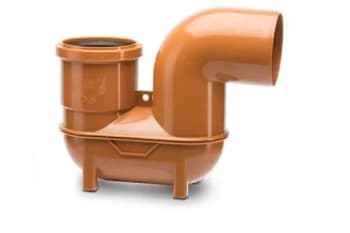

110mm Low Back P Trap Gully manufactured from durable uPVC to BS EN 1401-1, designed for underground use to collect surface water and discharge it into underground drainage while preventing foul odours from escaping.
The gully incorporates an integral P trap water seal, which maintains a standing water barrier inside the fitting. This prevents gases from the underground drainage system from venting back into the property or outdoor spaces.
Supplied with a 90° low back outlet, it is designed for installations where the outlet pipe must run directly out at a right angle, making it particularly effective for positioning against walls or in confined spaces with limited room for pipework adjustment.
Features & Benefits
- Odour prevention: Integral P trap water seal stops foul gases from escaping into the environment.
- uPVC construction: Durable, lightweight, and resistant to corrosion, rot, and ground chemicals.
- Push-fit socket: Accepts plain-ended 110mm pipework securely without additional couplers.
- Surface water collection: Designed for downpipes, yard drains, and paved area outlets.
- Low maintenance: Accessible design makes inspection and cleaning straightforward.
- 90° low back outlet: Allows pipe runs to exit at right angles, saving space near walls.
Applications
- Downpipe connections: Links roof rainwater downpipes to underground drains.
- Odour control: Maintains a water trap to prevent foul smells from escaping.
- Tight installations: Ideal for locations where the outlet must run at 90° in limited space.
- Paved or yard drainage: Connects open surface gullies or paved channels to the system.
Installation Guidance
- Preparation: Excavate and bed the gully on compacted granular material.
- Connection: Insert plain-ended pipe into the push-fit socket until fully seated.
- Sealing: Ensure the integral trap contains water to maintain the seal.
- Backfilling: Surround with suitable granular fill before final backfill.
- Access: Ensure the gully remains accessible for cleaning and maintenance.
Compliance & Performance
- Standard: BS EN 1401-1.
- Size: 110mm diameter, 90° outlet.
- Type: Low back P trap gully.
- Material: uPVC.
- Applications: Underground foul and surface water drainage.
- Performance: Provides reliable water seal against odours.
- Durability: Resistant to corrosion, chemicals, and long-term ground conditions.
