Key Features
- {{all_out}} Expands symmetrically for maximum surface
- {{apartment}} For secure anchoring in masonry, brick, and blockwork
- {{api}} Anti-rotation fins
- {{arrow_circle_down}} Stable, vibration-resistant hold
Technical Specification
| URN: | 1001177 |
|---|---|
| Indoor/Outdoor Usage: | Outdoor |
| Material Type: | Nylon |
| Size: | 10mm |
| Length: | 50mm |
| Diameter: | 10mm |
| Sales Unit: | Box |
| Box Quantity: | 50 |
| Colour: | Grey |
Product Overview

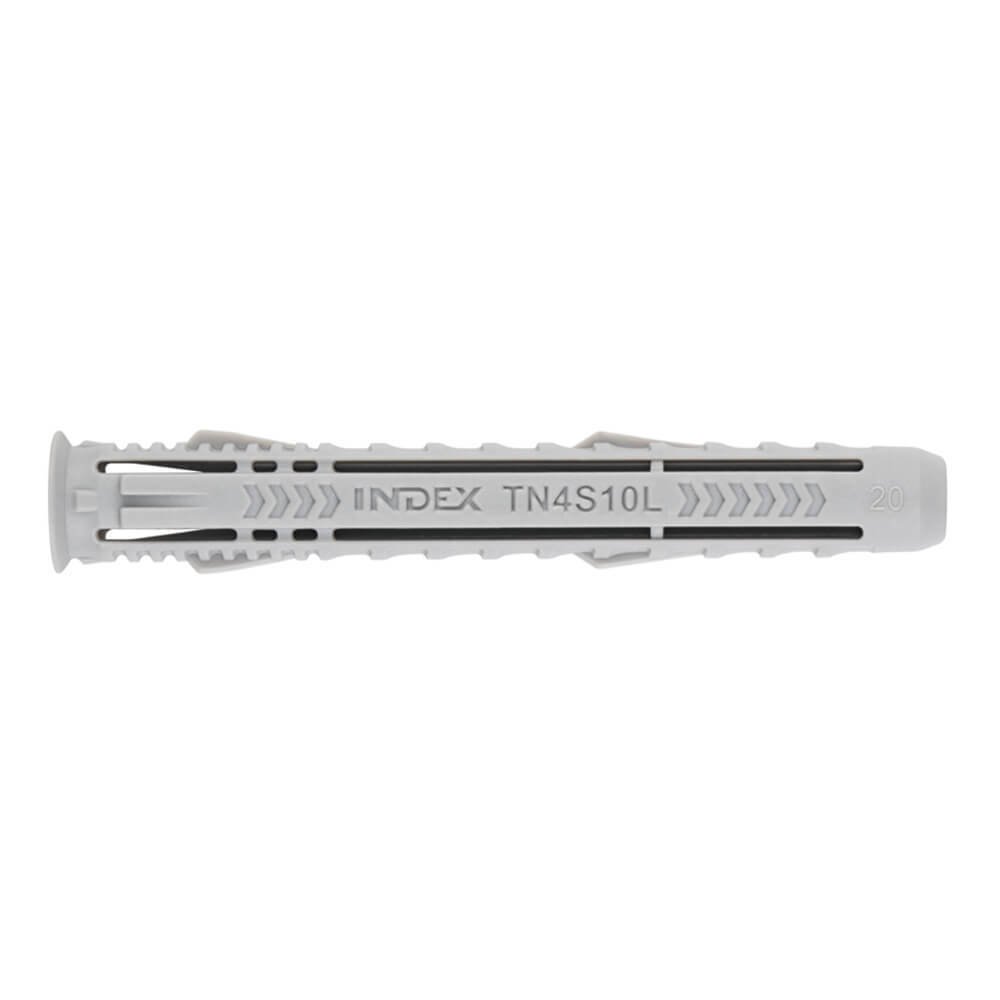

4 Way Expansion Plugs with a 10mm diameter for secure anchoring in masonry, brick, and blockwork.
Manufactured from high-strength, flexible nylon that resists cracking and deformation under torque, ensuring durable performance across dense and lightweight materials. The split body expands uniformly under screw pressure, delivering a stable, vibration-resistant hold without damaging the substrate.
The 10mm plug size accommodates large gauge screws, providing a reliable fixing for heavy-duty applications. Offers consistent seating and precise alignment where secure anchorage and clean installation are essential.
Features & Benefits
- Four-way expansion design: Expands symmetrically for maximum surface contact and even load transfer.
- High-strength polymer body: Resists cracking, splitting, and fatigue under torque load.
- Secure hold in varied substrates: Performs reliably in solid brick, lightweight block, and masonry.
- Anti-rotation fins: Prevent the plug from spinning during screw insertion for easier installation.
- 10mm plug diameter: Sized to accept large screws, ensuring firm retention without over tightening.
Applications
- Heavy fixings: Suitable for pipe clamps, metal brackets, and heavy shelving.
- Mechanical and electrical fittings: Holds large conduit saddles, trunking, and support rails.
- Industrial or structural use: Secure option for equipment fixings and permanent installations.
Installation Guidance
- Drill hole to correct diameter: Use a 10mm masonry bit to achieve a snug plug fit.
- Clean the drilled hole: Remove dust and debris to ensure maximum grip.
- Insert plug flush with surface: Tap gently until level with wall face.
- Drive compatible screw: Use a screw of suitable gauge and length to expand plug evenly.
Compliance & Performance
- Material specification: Manufactured from impact-resistant nylon for consistent expansion.
- Important note: Always match plug size to the correct drill and screw diameter for full load performance.
