Key Features
- {{fitness_center}} Certified to A15 loading
- {{join_inner}} Connects with ACO HexDrain outlets, corners, and accessories
- {{extension}} Interlocking channel ends
- {{remove_red_eye}} Discreet surface finish
Technical Specification
| URN: | 7001106 |
|---|---|
| Brand: | Aco |
| Material Type: | Polypropylene |
| Width: | 118mm |
| Length: | 1000mm |
| Height: | 97mm |
| Weight: | 7.58kg |
| Sales Unit: | Each |
| Manufacturer's Reference: | 47000 |

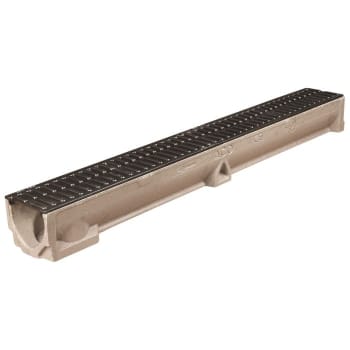

Product Overview
1m surface water drainage channel designed for the effective collection and discharge of rainwater from paved areas, driveways, and paths.
The ACO RainDrain system combines a strong polymer concrete channel body with a galvanised steel grating for enhanced durability and long-term performance.
Engineered for domestic and light commercial applications, the channel provides a robust and efficient means of managing surface run-off. The galvanised steel top grating resists corrosion, impact, and wear from frequent foot traffic, making it ideal for regularly used outdoor spaces.
Each 1m unit incorporates interlocking ends for quick alignment and secure connection, forming a continuous linear drainage run. The channel profile promotes smooth water flow to the outlet, ensuring efficient surface drainage even in heavy rainfall conditions.
RainDrain channels are compatible with a full range of ACO accessories, including sump units, outlet adaptors, and end caps, allowing full system flexibility and straightforward installation on site.
Features & Benefits
- Durable construction: Polymer concrete body provides strength and long-term stability.
- Galvanised steel grating: Offers superior wear resistance and corrosion protection.
- Reliable drainage: Smooth internal surface promotes efficient water flow.
- Quick connection: Interlocking ends enable accurate alignment and fast assembly.
- System compatibility: Fully compatible with ACO RainDrain outlets and fittings.
- Versatile use: Suitable for domestic driveways, patios, and paved walkways.
Applications
- Driveways: Suitable for domestic vehicle areas and garage thresholds.
- Patios and terraces: Provides reliable run-off control for paved surfaces.
- Paths and walkways: Ideal for pedestrian areas with frequent foot traffic.
- Courtyards and entrances: Manages surface water where hardstanding meets buildings.
Installation Guidance
- Preparation: Excavate to required alignment and depth for the drainage run.
- Bedding: Set channel on a compacted concrete or stable base for accurate level.
- Connection: Join channels using the integral locking system to form a continuous run.
- Outlet fitting: Connect to drainage outlets or soakaway systems as specified.
- Edge finishing: Secure channel sides with concrete haunching to prevent movement.
- Grating installation: Clip galvanised steel grating firmly into position before final surfacing.
Compliance & Performance
- Load rating: Manufactured to meet EN 1433 Class A15 for pedestrian and light domestic traffic.
- Material standard: Complies with ACO system specifications for polymer concrete channels.
- Corrosion resistance: Galvanised steel grating provides long-lasting surface protection.
- Hydraulic performance: Designed for efficient surface water collection and discharge.
- Important note: Not suitable for heavy vehicle areas exceeding A15 loading class.
