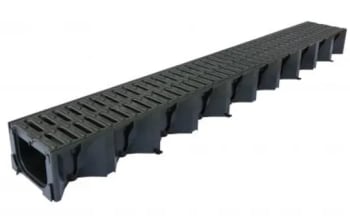

1m Aco HexDrain Channel A15 Loading With Black Plastic Grating
Nationwide Delivery
Tue 16 Jun
- 0days
- 6hrs
- 34mins
- 38secs
lock Secure checkout (powered by Stripe)
Learn more
Pay in 3 interest-free payments
Split your purchase of £11.23 into 3 with no sign-up fees or late fees.
£3.74
today
£3.74
1 month
£3.74
2 months
How it works
- Choose PayPal at checkout to pay later with Pay in 3.
- Complete your purchase with the first payment today.
- Remaining payments are taken automatically.
Pay in 3 is a form of credit, so carefully consider whether the purchase is affordable and how you will make the repayments. Be aware of the possible impact of using Pay in 3 and of missing payments, including making other borrowing more difficult or more expensive. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Available for purchases of £30 to £2,000. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.
Learn more
Buy now. Pay with Klarna at your own pace.
Get what you need for your next project, choose how you pay.
Pay in 30 days
£11.23
Pay in full
Klarna's Pay in 30 days is an unregulated credit agreement. Borrowing more than you can afford or paying late may negatively impact your financial status and ability to obtain credit. 18+, UK residents only. Subject to status. T&Cs and late fees apply.
Pay over time
£3.74
Every 30 days
Pay in 3
£3.74
today
£3.74
in 30 days
£3.74
in 60 days
Klarna's Pay in 3 is an unregulated credit agreement. Borrowing more than you can afford or paying late may negatively impact your financial status and ability to obtain credit. 18+, UK residents only. Subject to status. T&Cs and late fees apply.
How it works
- At checkout select Klarna.
- Choose your payment plan.
- Different payment plans may be shown depending on the purchase amount and credit score.
- Complete your checkout.
- The amount will be charged based on the payment plan you chose.
Learn more
Pay in 4 interest-free payments
Split your purchase of £11.23 into 4 with no sign-up fees or late fees. Your purchase will be split into 4 payments, payable every 2 weeks
£2.81
today
£2.81
second payment
£2.81
third payment
£2.81
fourth payment
How it works
- Choose Clearpay at checkout to pay later with Pay in 4.
- Complete your purchase with the first payment today.
- Remaining payments are taken automatically.
Clearpay is unregulated credit. Use responsibly. 18+, T&Cs and late fees apply at clearpay.co.uk/en-GB
Clearpay lends you a fixed amount of credit so you can pay for your purchase over 4 instalments, due every 2 weeks. Ensure you can make repayments on time. You must be 18+ and a permanent UK resident (excl Channel Islands). Clearpay charges a £6 late fee for each late instalment and a further £6 if it’s still unpaid 7 days later. Late fees are capped at £6 for orders under £24 and the lower of £24 or 25% of the order value for orders over £24. Missed payments may affect your ability to use Clearpay in the future and your details may be passed onto a debt collection agency working on Clearpay’s behalf. Clearpay is credit that is not regulated by the Financial Conduct Authority. T&Cs and other eligibility criteria apply at clearpay.co.uk/terms
Key Features
- {{fitness_center}} Certified to A15 loading
- {{join_inner}} Connects with ACO HexDrain outlets, corners, and accessories
- {{extension}} Interlocking channel ends
- {{remove_red_eye}} Discreet surface finish
Technical Specification
| URN: | 7001105 |
|---|---|
| Brand: | Aco |
| Material Type: | Polypropylene |
| Width: | 129mm |
| Length: | 1000mm |
| Height: | 80mm |
| Weight: | 1.4kg |
| Sales Unit: | Each |
| Colour: | Black |
| Manufacturer's Reference: | 19310 |
Product Overview
1m surface water drainage channel designed for efficient collection and conveyance of rainwater from paved areas, paths, and driveways.
The ACO HexDrain system combines a lightweight polymer channel body with a durable black plastic grating to form a robust, easy-to-install linear drainage solution.
Manufactured from high-strength recycled polypropylene, the channel offers excellent resistance to weathering, thermal expansion, and corrosion. The honeycomb structure of the HexDrain body enhances rigidity while keeping weight low for practical handling on site.
Rated to A15 loading, the system is suitable for pedestrian areas, patios, gardens, and light-use driveways where only foot traffic or lightweight domestic vehicles occur. The black grating provides a discreet surface finish that blends cleanly with most paving materials.
Each 1m channel length features an interlocking end profile for fast connection and alignment, forming a continuous drainage run.
The design allows straightforward cutting and joining, and can be used with compatible ACO accessories including sump units, corner connectors, and end caps for complete system integration.
Features & Benefits
- Lightweight construction: Manufactured from recycled polypropylene for easy handling and installation.
- Structural rigidity: Hexagonal body design provides strength and stability under light loading.
- Corrosion resistance: Non-metallic materials eliminate risk of rusting or degradation.
- Discreet appearance: Black plastic grating blends with most surface finishes.
- Quick connection: Interlocking channel ends enable rapid on-site assembly.
- System compatibility: Connects with ACO HexDrain outlets, corners, and accessories.
- Nominal size: 1m surface water channel rated to A15 loading class.
Applications
- Patios and paths: Provides surface water collection along paved or landscaped areas.
- Driveways: Suitable for light-use domestic driveways with occasional vehicle loading.
- Garden drainage: Helps manage rainfall run-off around lawns and borders.
- Pedestrian areas: Ideal for walkways, terraces, and courtyards subject to foot traffic.
Installation Guidance
- Channel placement: Lay channels to the designed alignment and gradient.
- Bedding: Install on a compacted concrete or stable sub-base to maintain level.
- Jointing: Connect channel ends using the integral locking system for secure joints.
- Outlet connection: Attach to suitable pipe outlets or soakaway systems as required.
- Grating fitting: Clip black plastic grating firmly into place before concreting edges.
- Finishing: Ensure surface paving sits level with grating top for smooth drainage flow.
Compliance & Performance
- Load rating: Certified to A15 loading for pedestrian and light domestic applications.
- Material standard: Manufactured in accordance with EN 1433 for linear drainage channels.
- Temperature resistance: Stable under normal environmental conditions and UV exposure.
- Water management: Designed to maintain efficient surface run-off collection.
- Important note: Not suitable for areas subject to regular vehicular traffic exceeding A15 rating.
